Modbus to IoT Gateway

eDGE

Takes Modbus field data to the cloud over MQTT — available in Ethernet and GSM variants.

Modbus → MQTTEthernet + GSMJSON

Overview

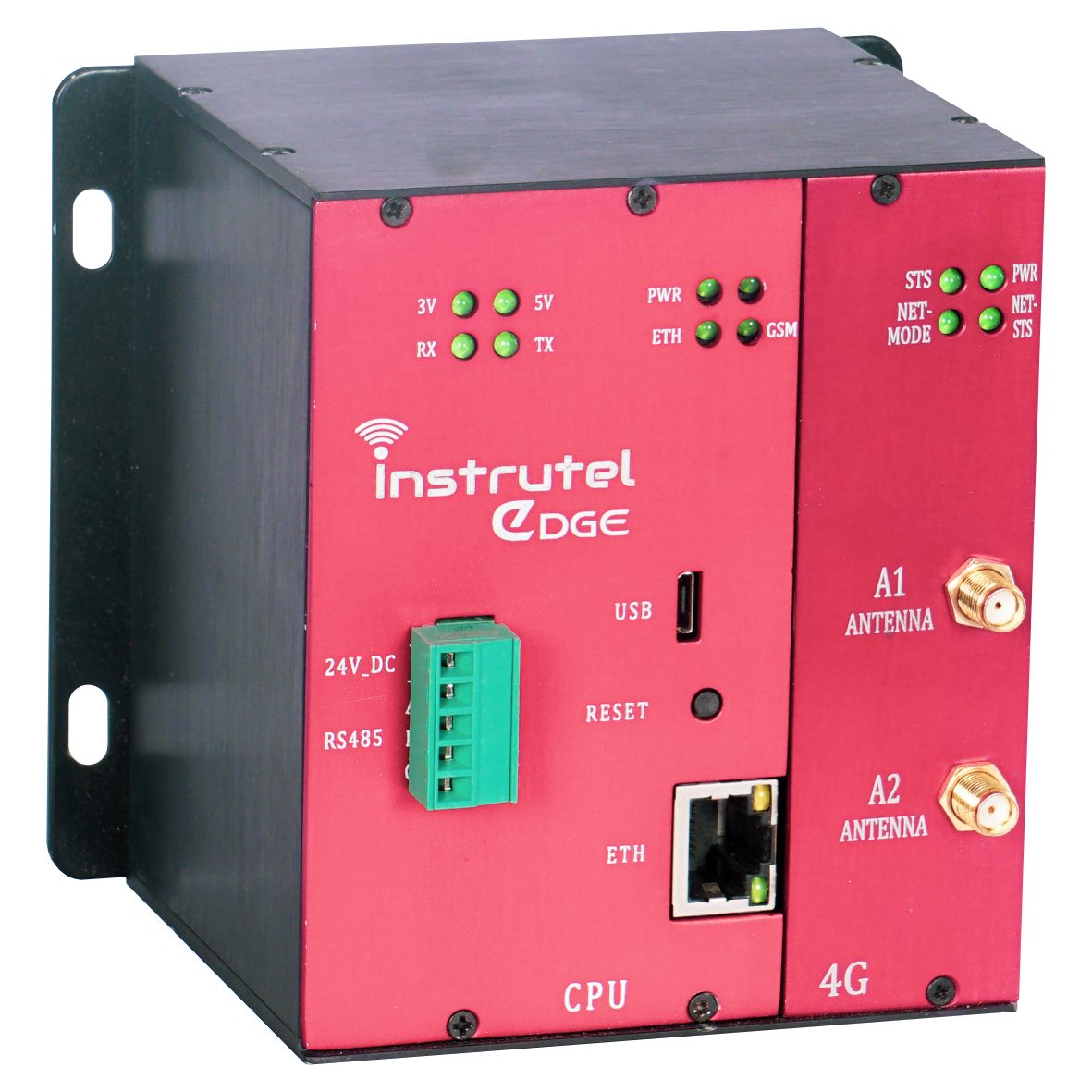

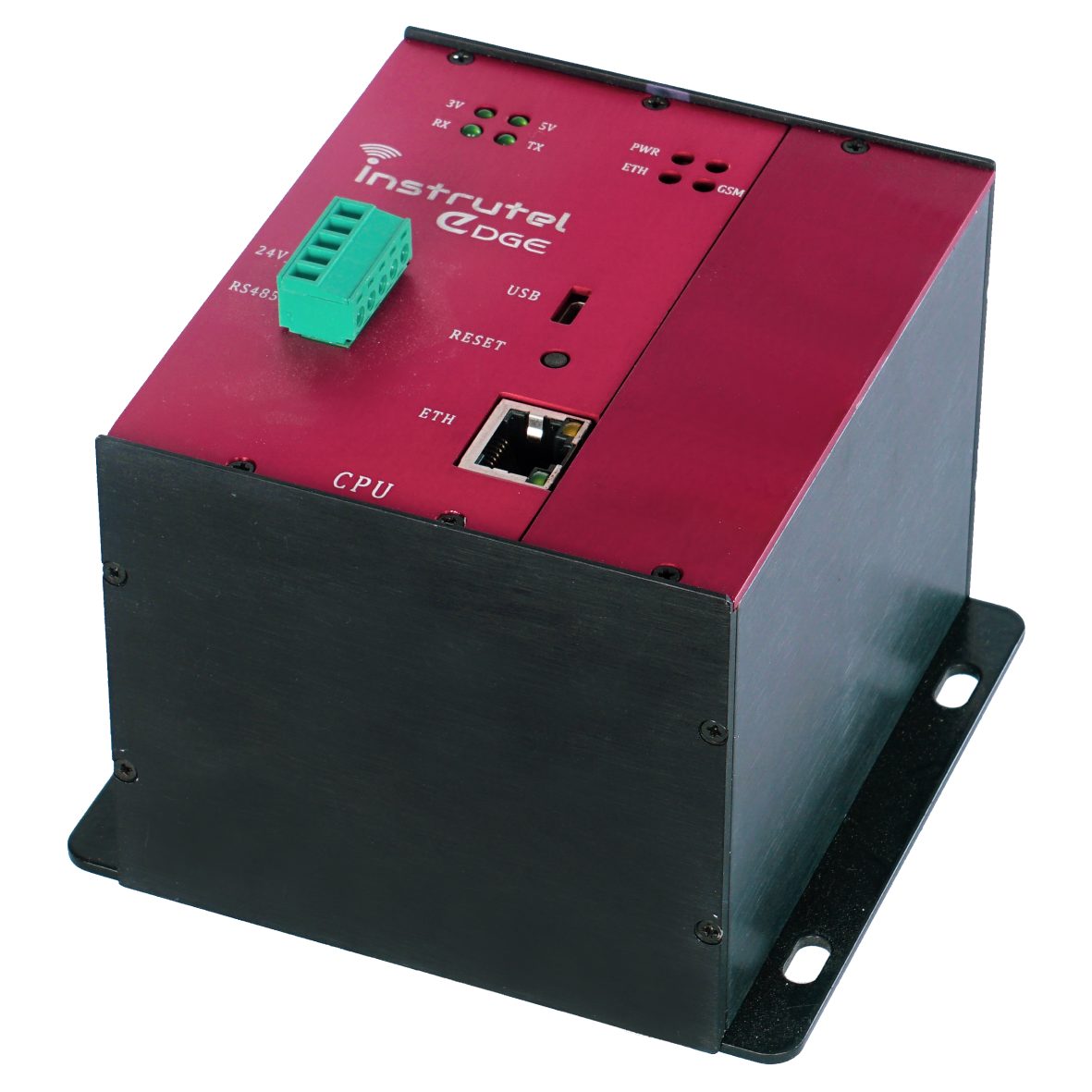

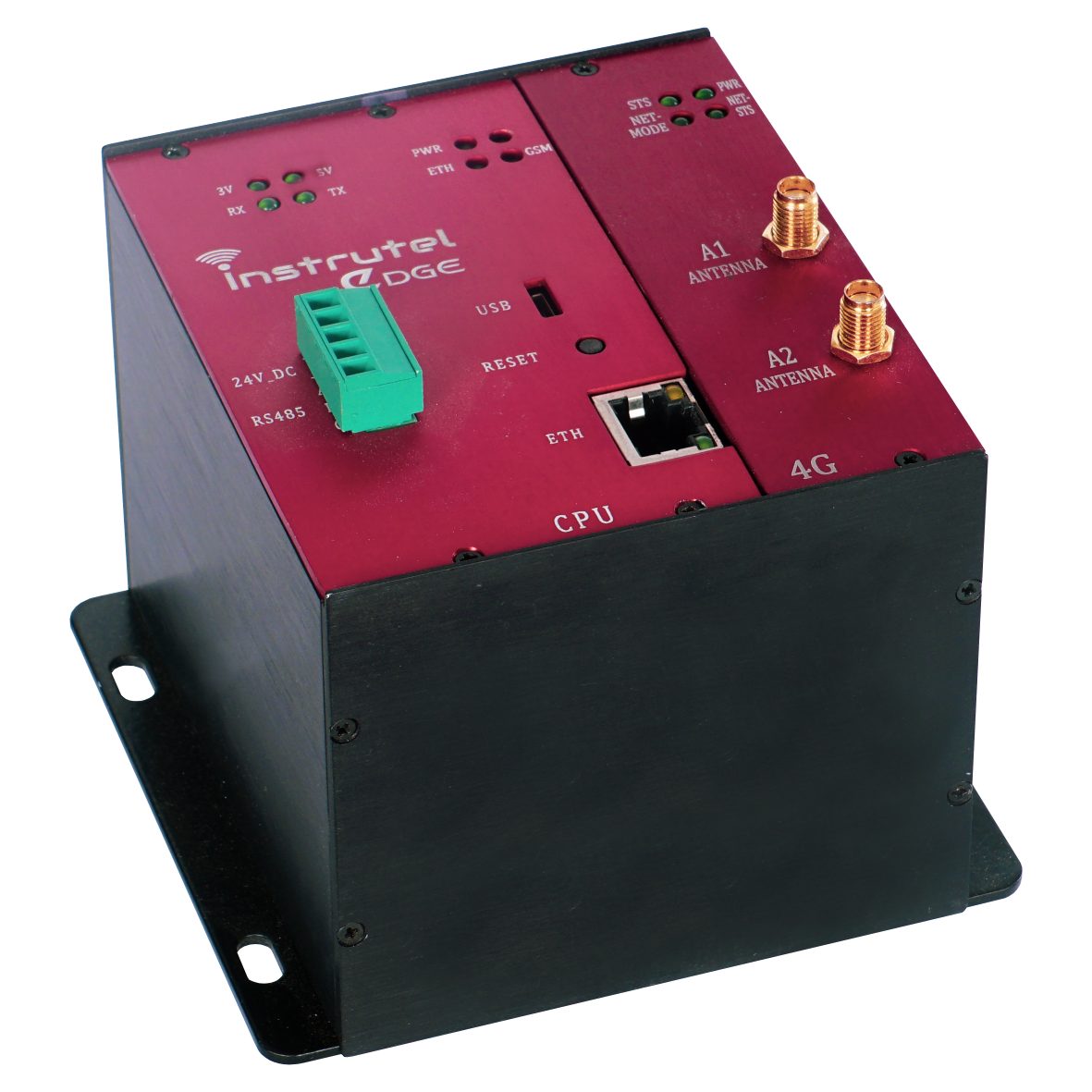

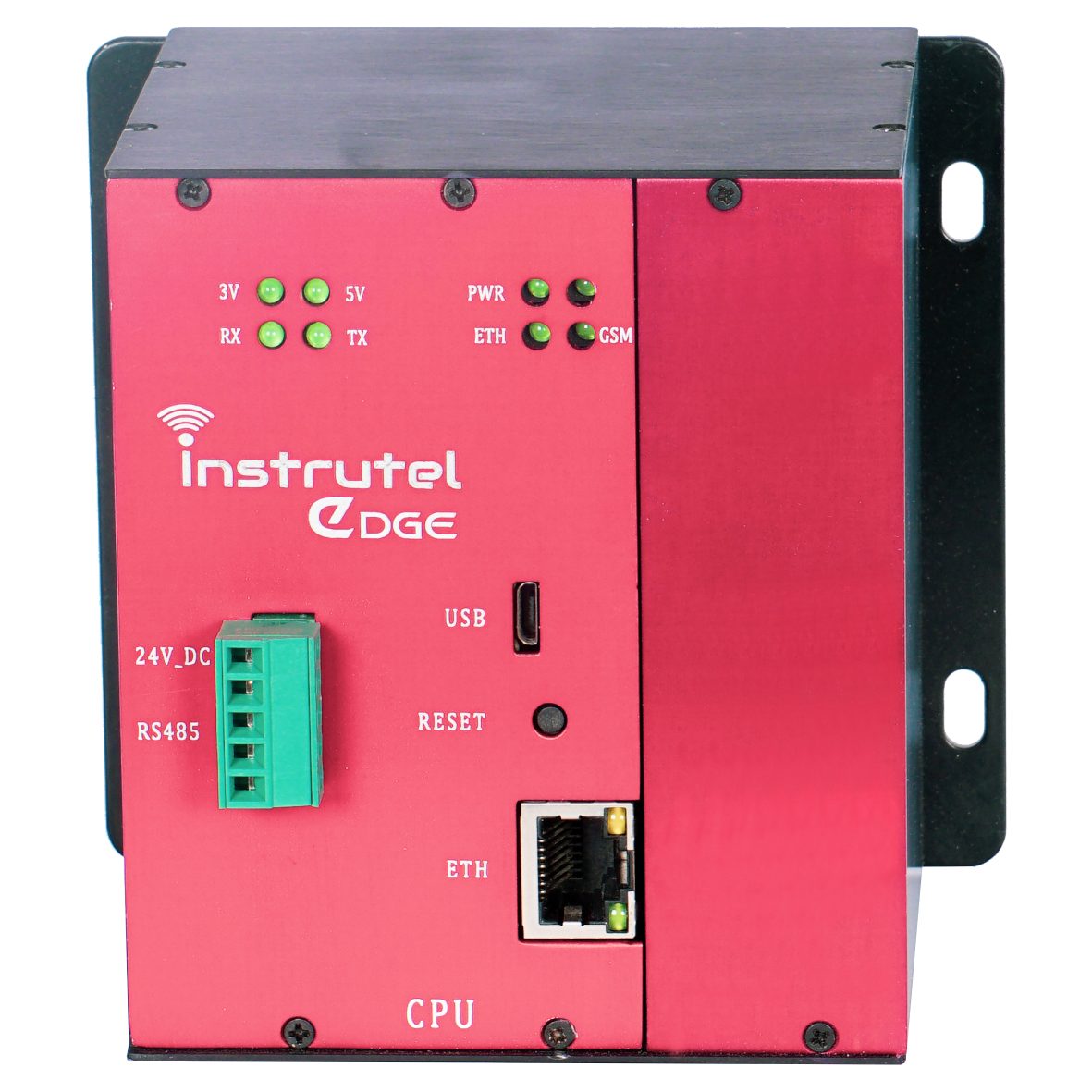

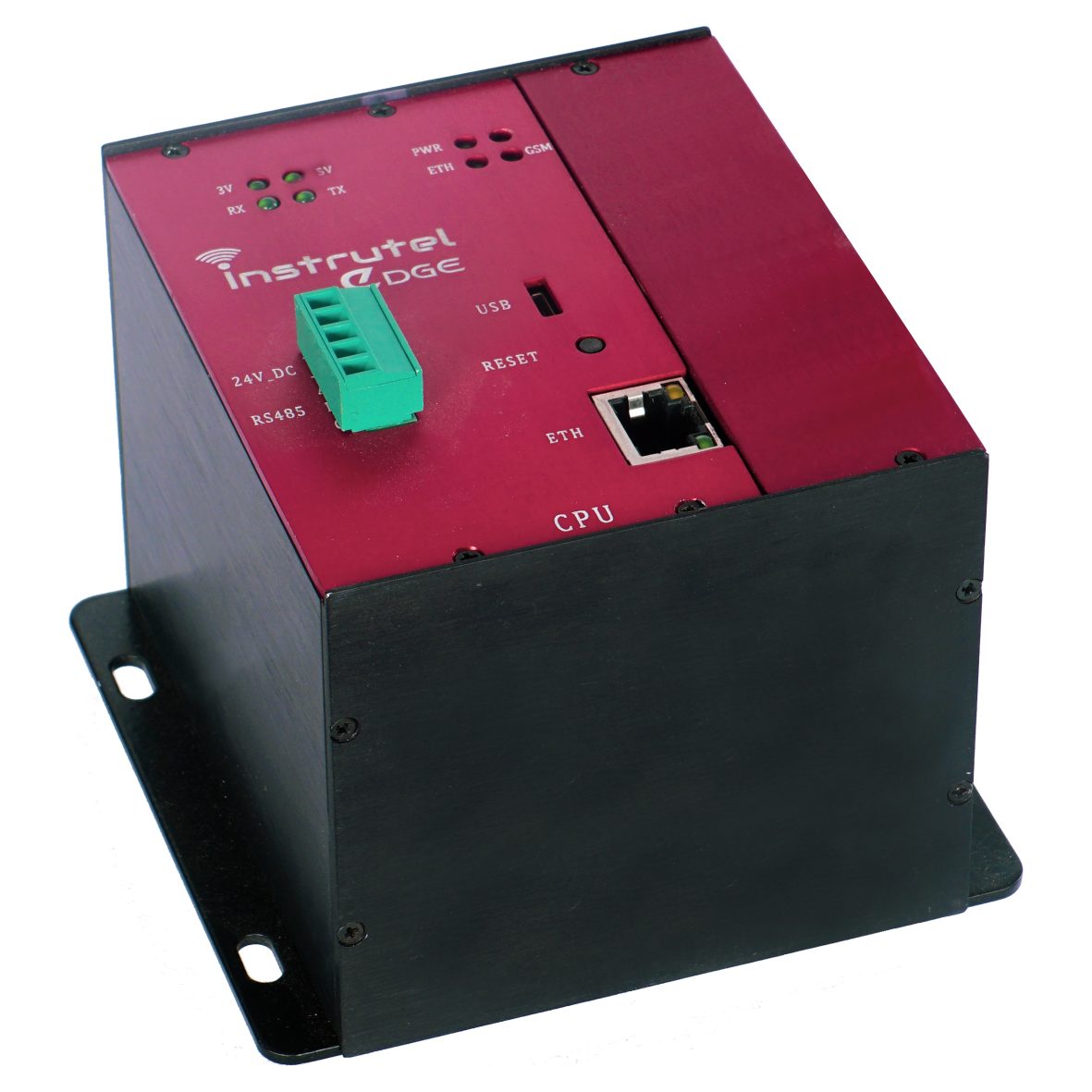

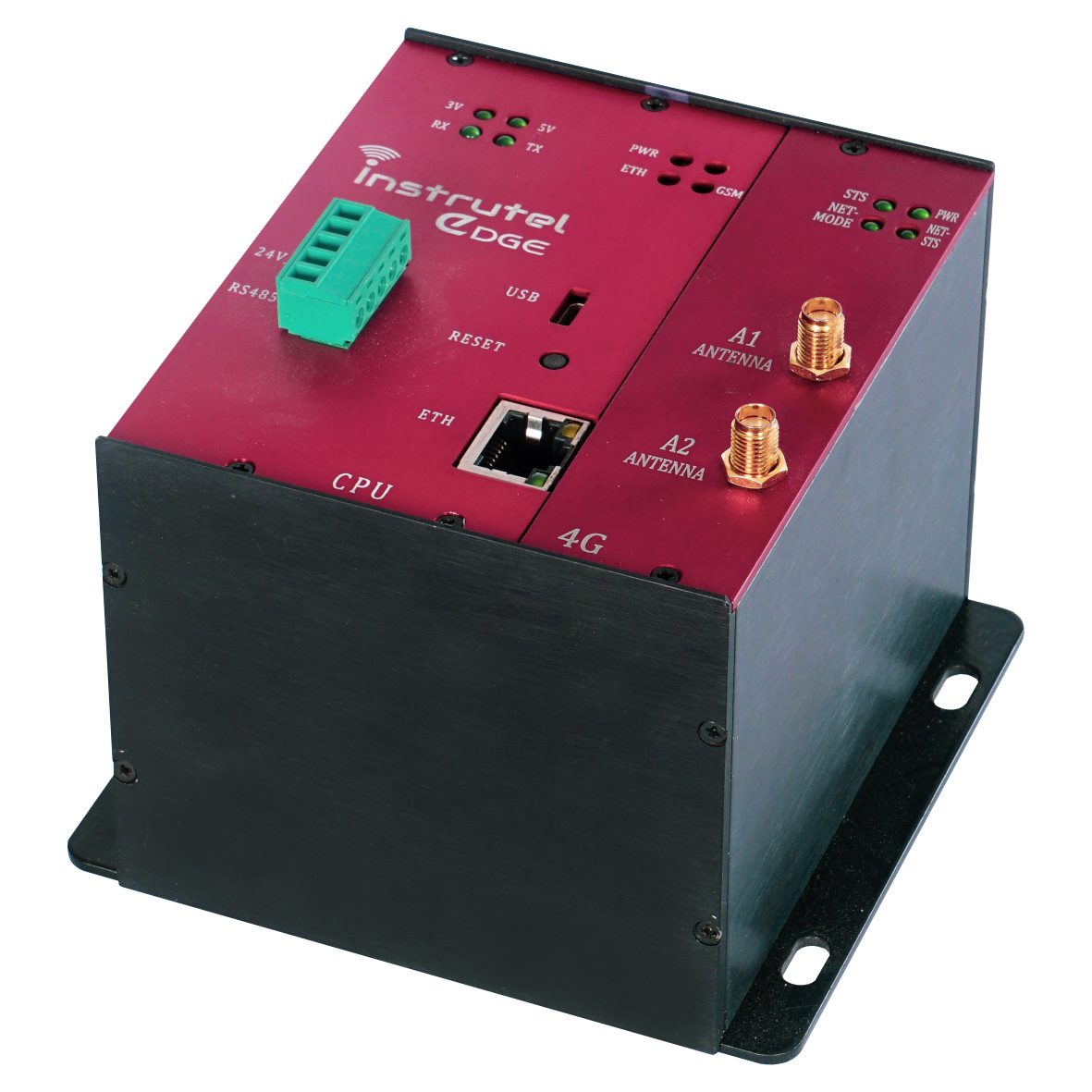

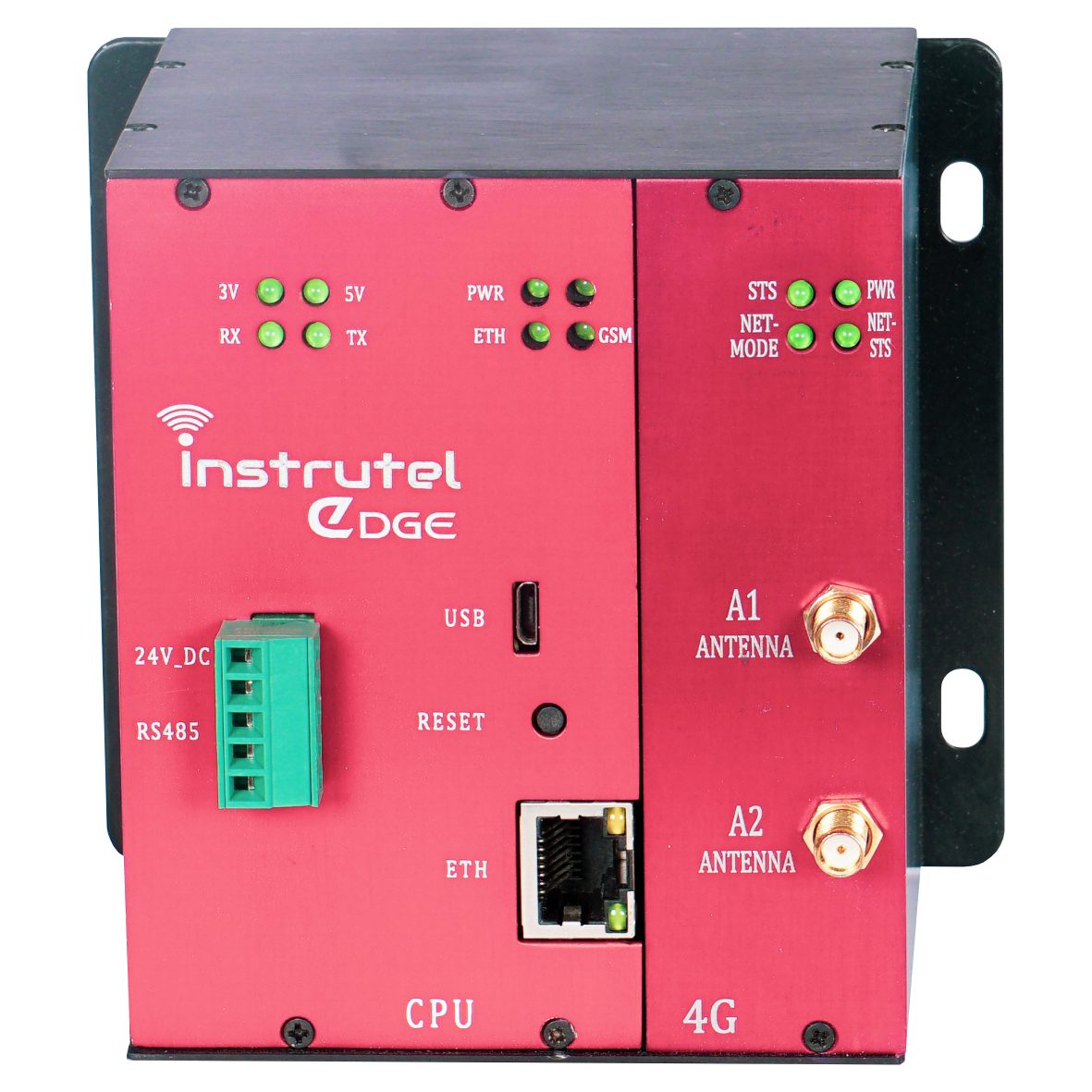

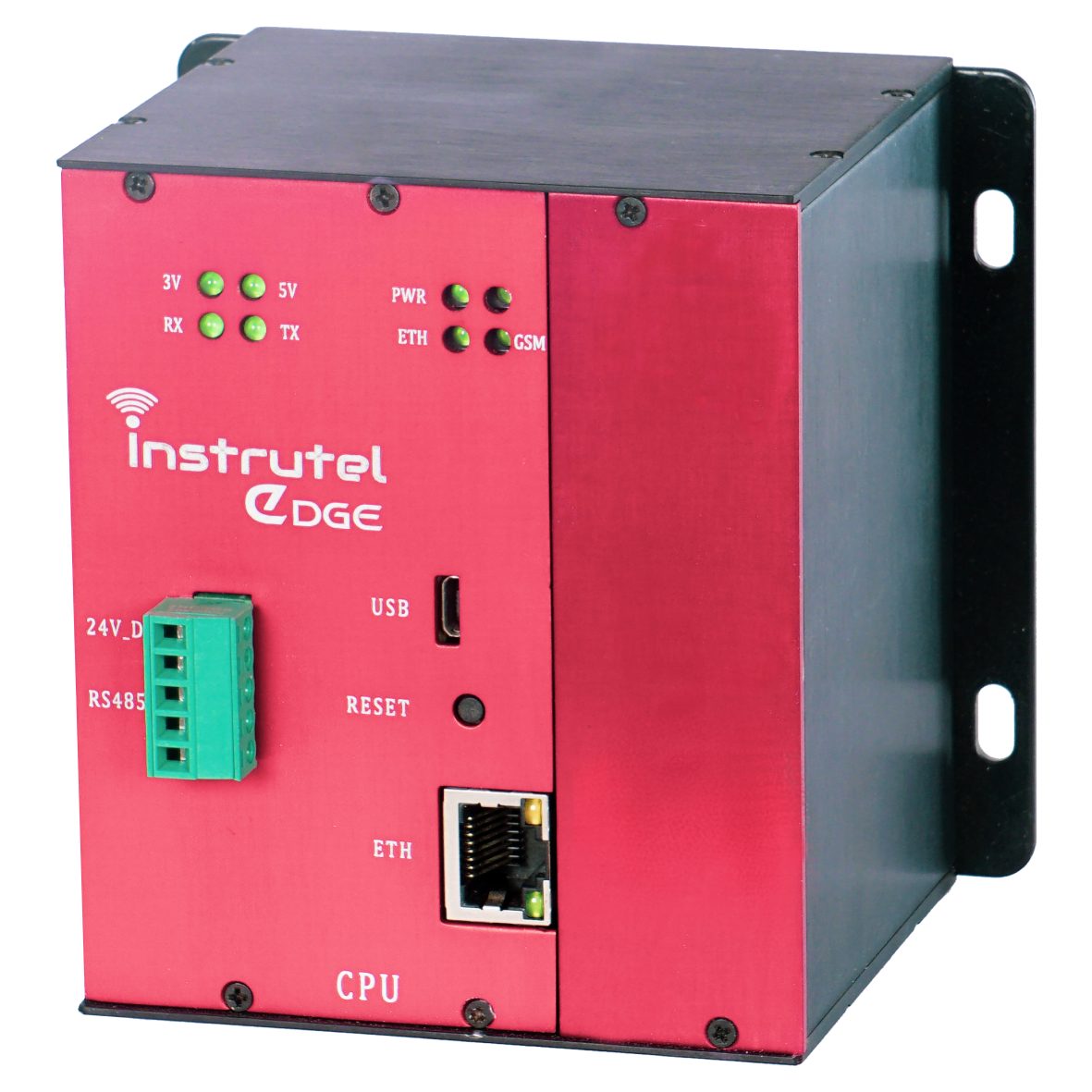

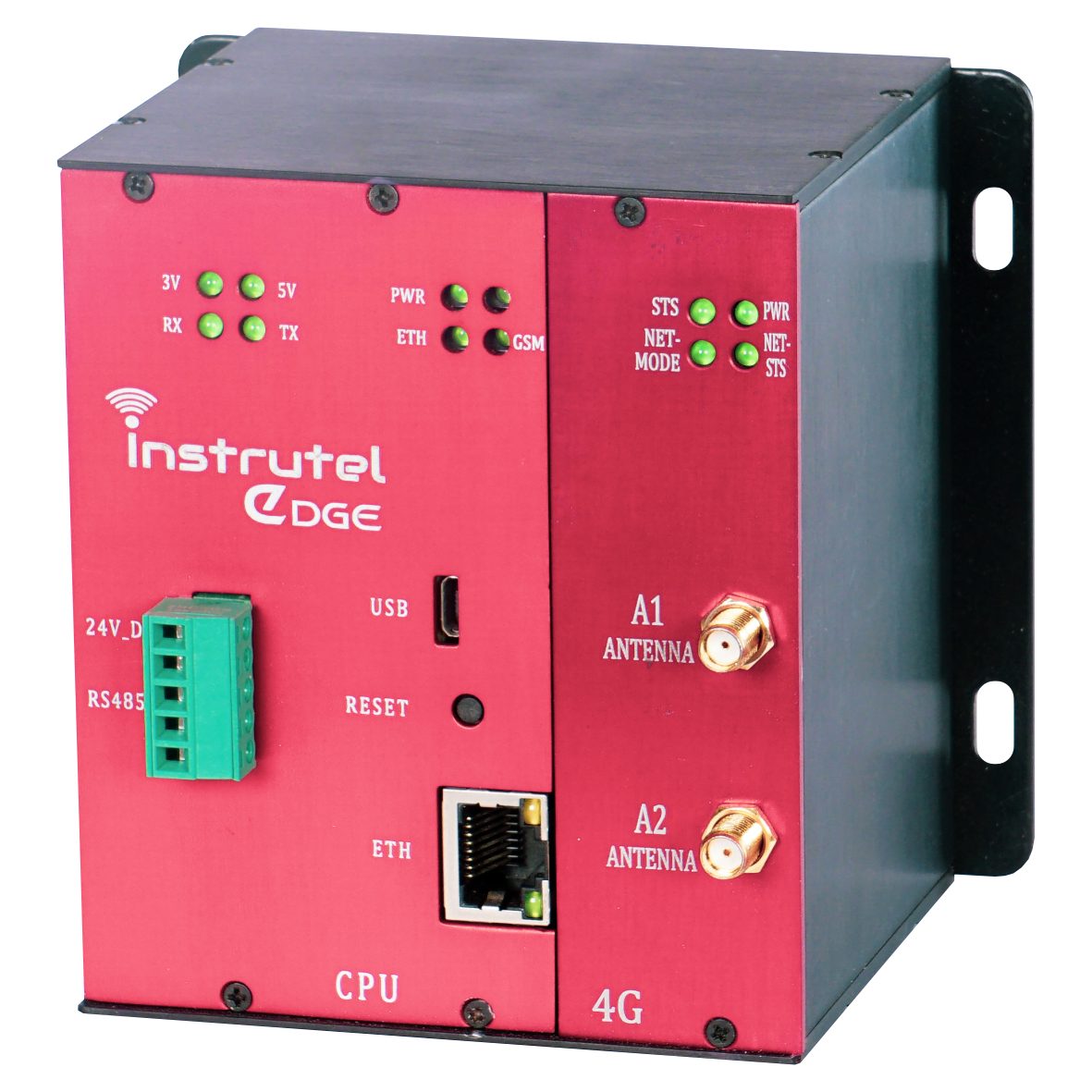

The eDGE is an industrial IoT gateway that gathers Modbus data from up to 30 field instruments over RS485 and forwards it to the cloud over MQTT, available in Ethernet and GSM variants.

Specifications

Technical specifications.

Dimensions(mm): 110.0(L) X 105.0(W) X 80.0(H)
Enclosure: Aluminium HE30
Weight: 600g
Protocols: MQTT
Data Format: JSON
Transmission: Transparent
Data Interval: 30 to 999 Seconds
Input Voltage: 12 - 24VDC
Consumption: 5W Avg(low power device - draws less than 200mA)
Input: RS485
Output: Ethernet
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

Full ratings, pin mapping and wiring are in the datasheet.

Features

Push data to server via Ethernet support
Can support up to 500 parameters
Can connect up to 30 instruments to eDGE (Ethernet)
Cloud base support system
Plug and play
High reliability, Low cost compact design, Convenient to use
