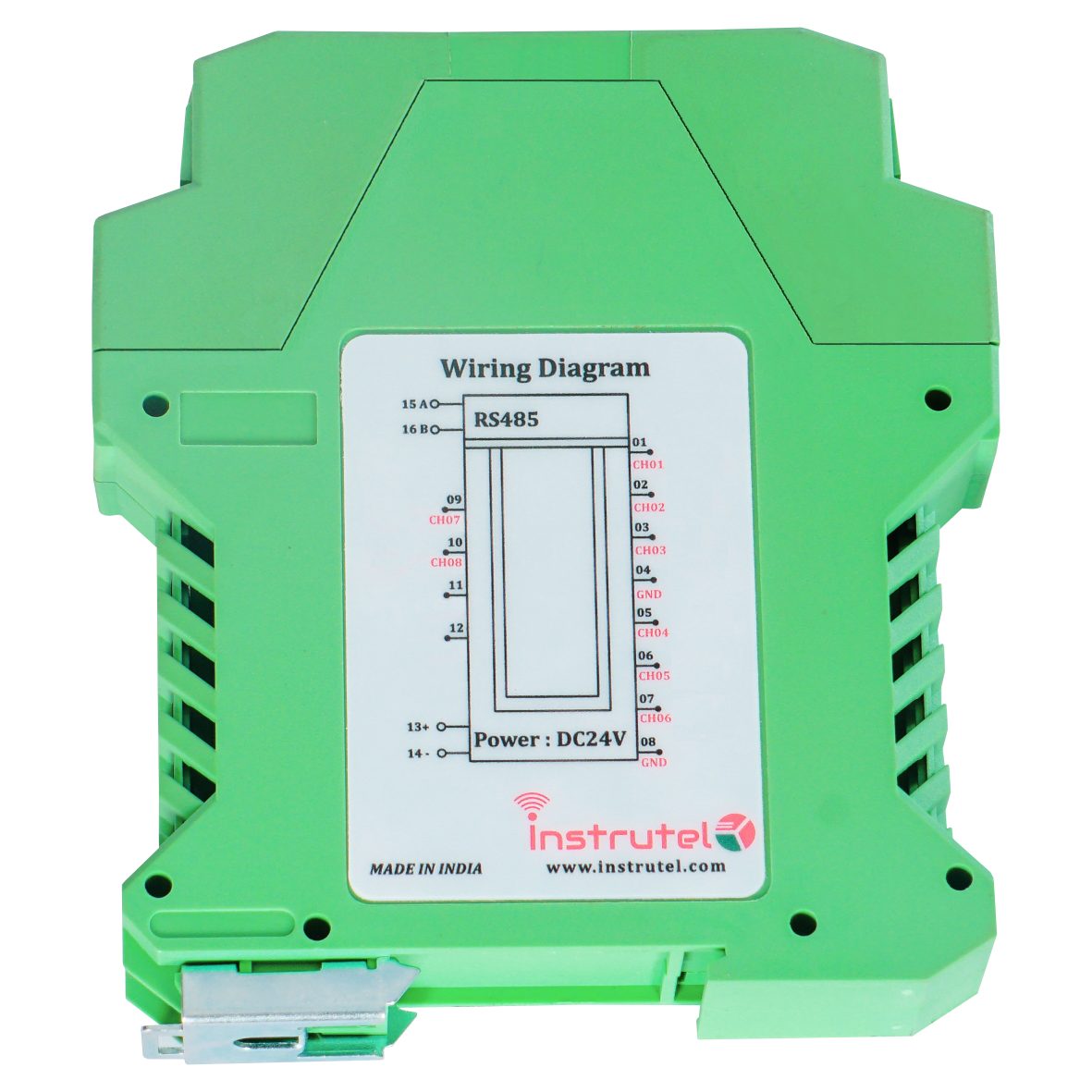

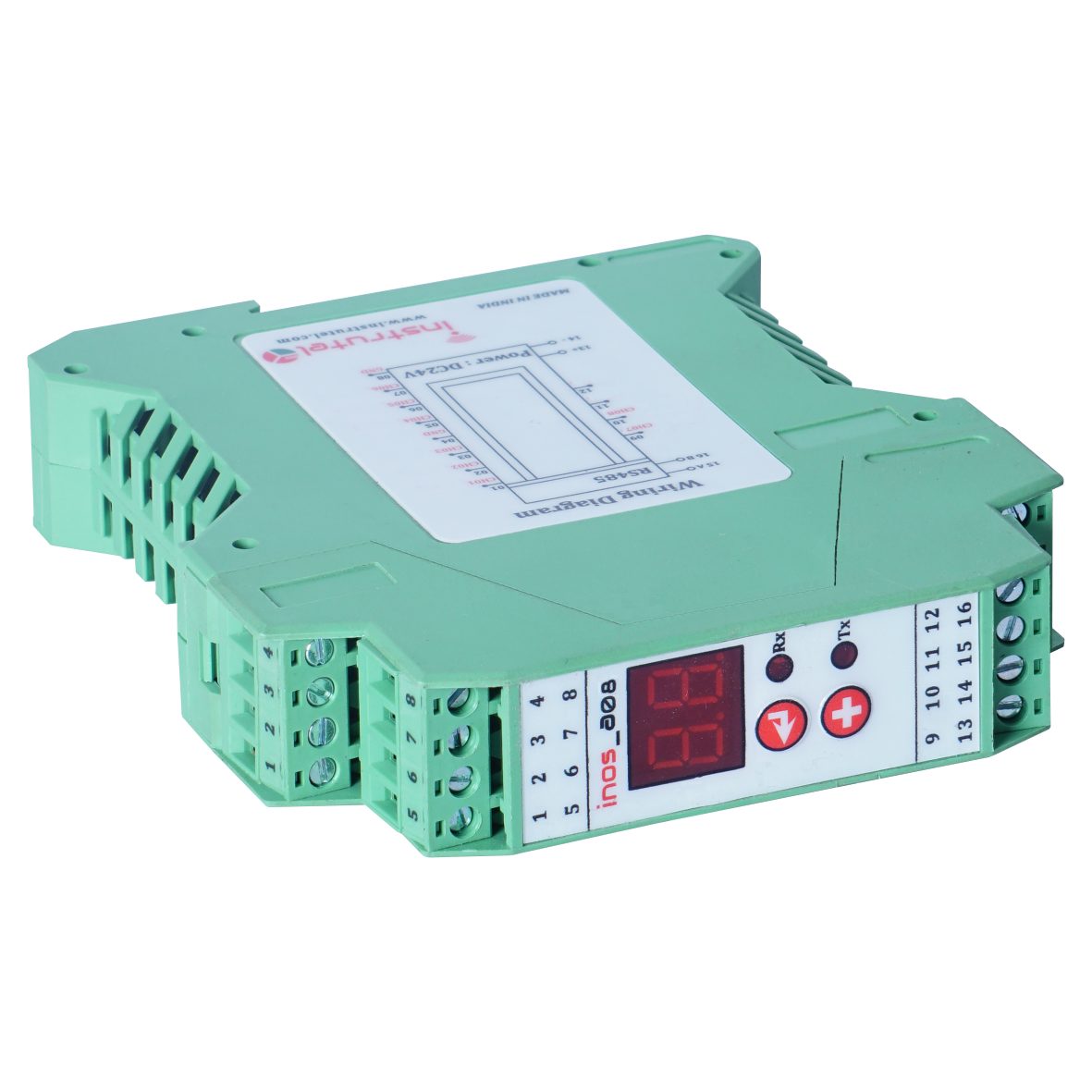

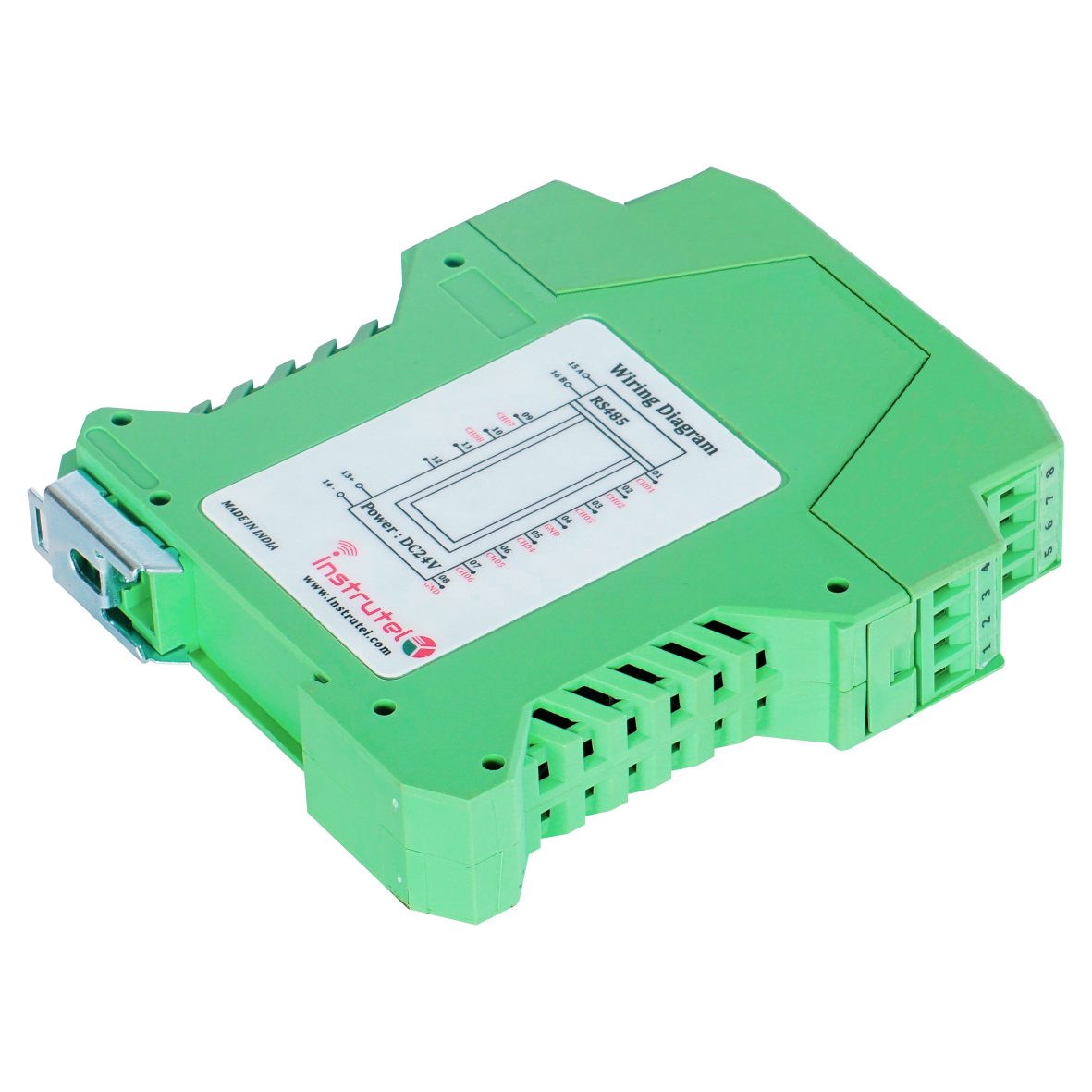

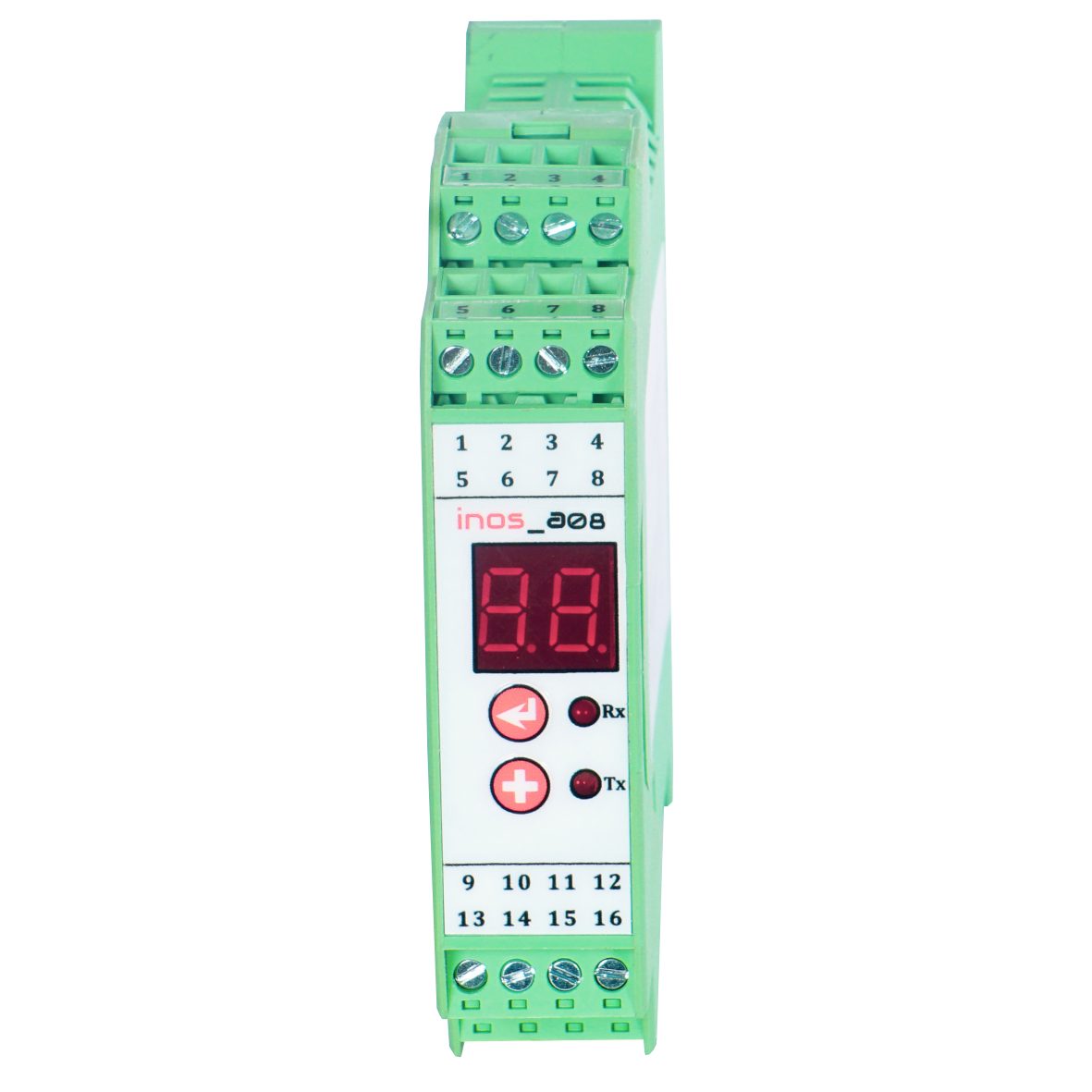

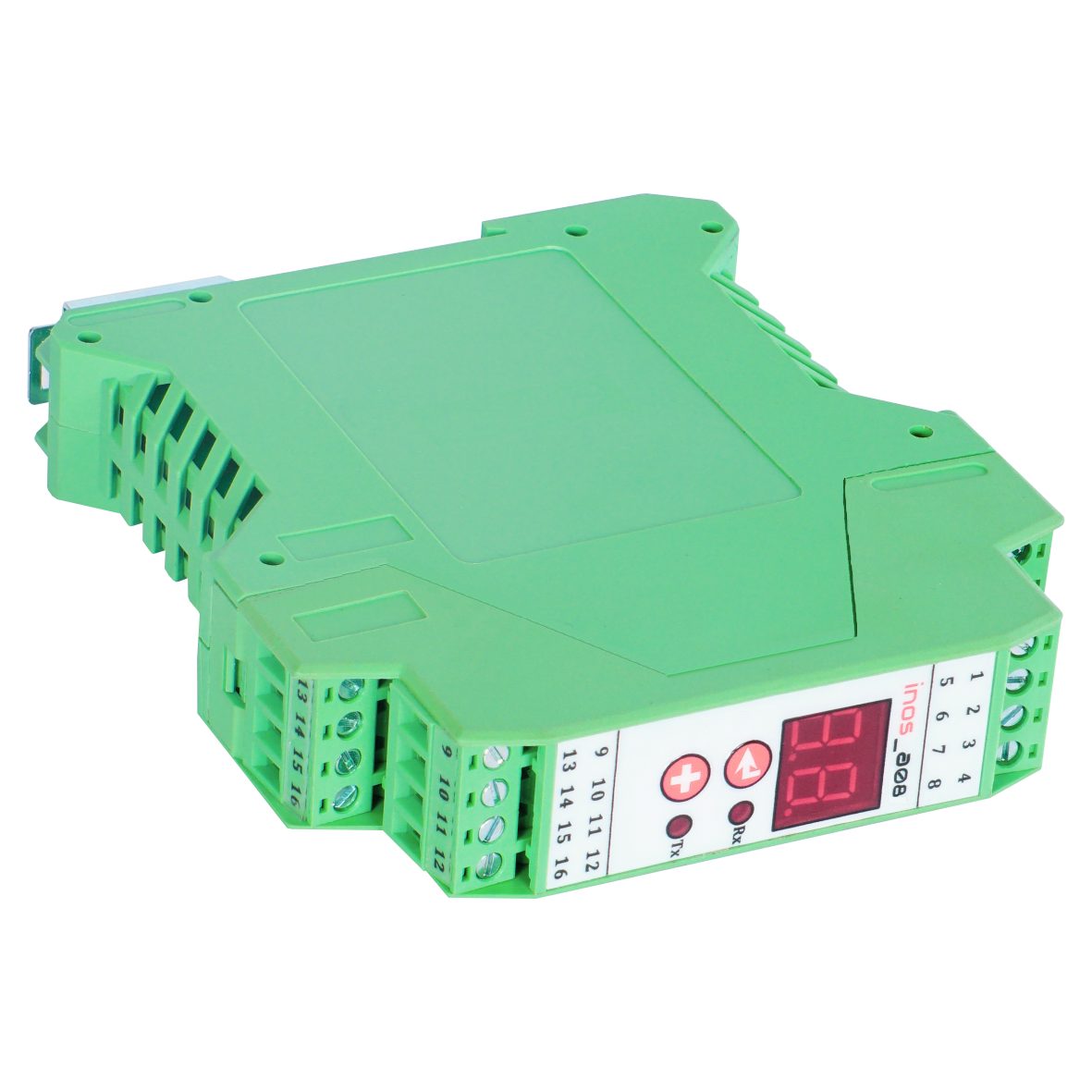

Analog Output Module

inos_a08

8-channel analog output module with RS485 Modbus RTU.

8 AORS485 Modbus RTU24 VDC

Overview

The inos_a08 is an 8-channel analog output module that drives 4–20 mA / 0–10 V loads such as valves and actuators, controlled over isolated RS485 using Modbus RTU.

Specifications

Technical specifications.

Dimensions (mm): 23.0(L) X 100.0(W) X 115.0(H)
Enclosure: Polyamide (PA66)
Weight: 150g
Operating Voltage: 24 VDC
Power Consumption: Maximum 5 Watt
Analog Outputs: 08 Channel 4 - 20mA / 0 - 10V
DAC resolution: 14-bit
DAC accuracy: 0.1 % FS
Isolation Type: Isolated(2KV) Digital to Analog
Connectivity Supported: Isolated RS485
Protocol Supported: Modbus RTU
Communication Interface: 2-Wire Type
Watchdog Timer: System (5 Sec)
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

Full ratings, pin mapping and wiring are in the datasheet.

Features

8 Channel 4-20mA/0-10V (Factory Configurable), 14-bit DAC
Provision to set Parameter Range for each channel
Compact Din rail Mounting
Modbus RTU RS485
Modular Architecture
Rugged Durability

Applications

Process Automation
Automotive Industry
Retrofit old machines with new devices
Building Automation
Sub-station Automation
Input to Output Expansion / Integration
Process Optimization
