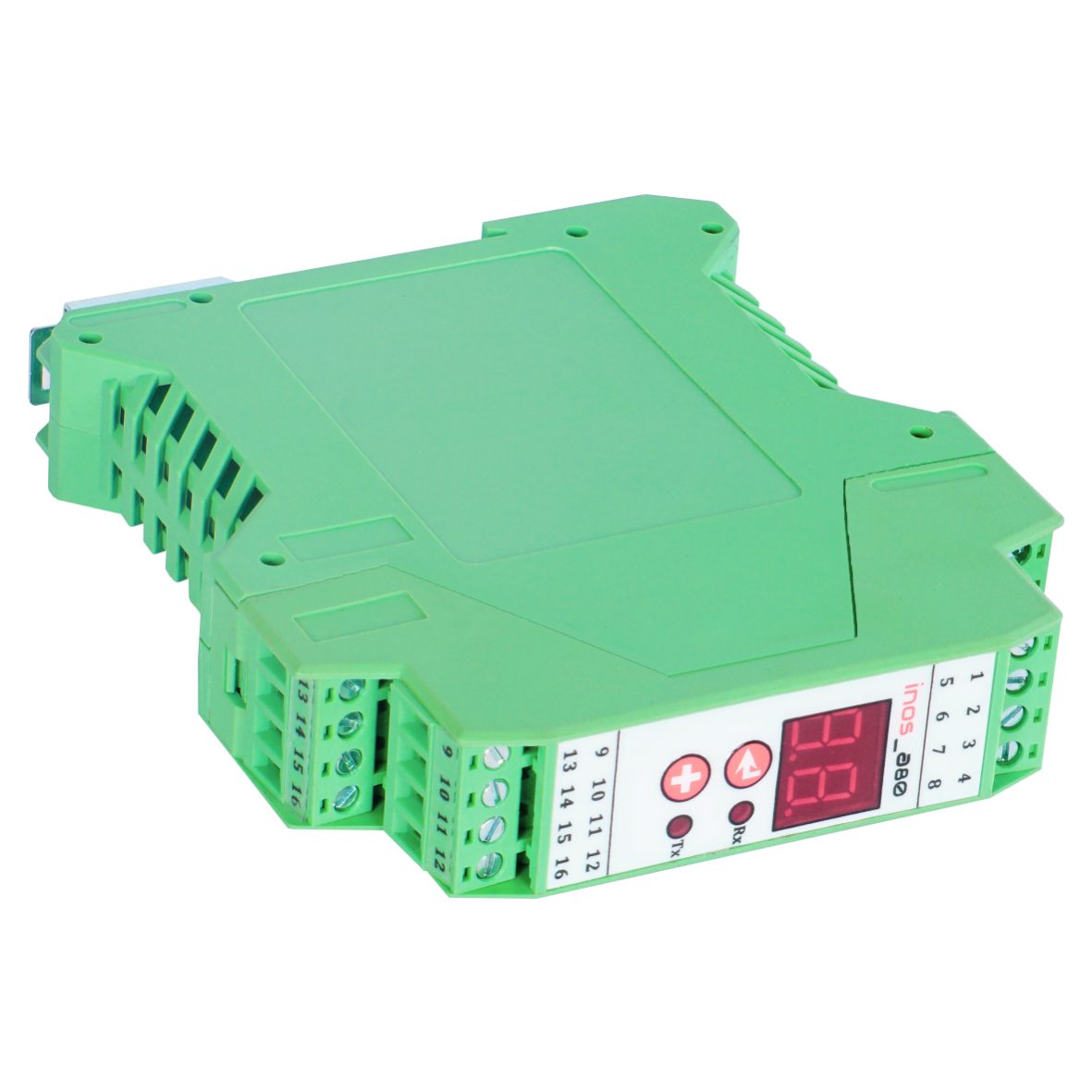

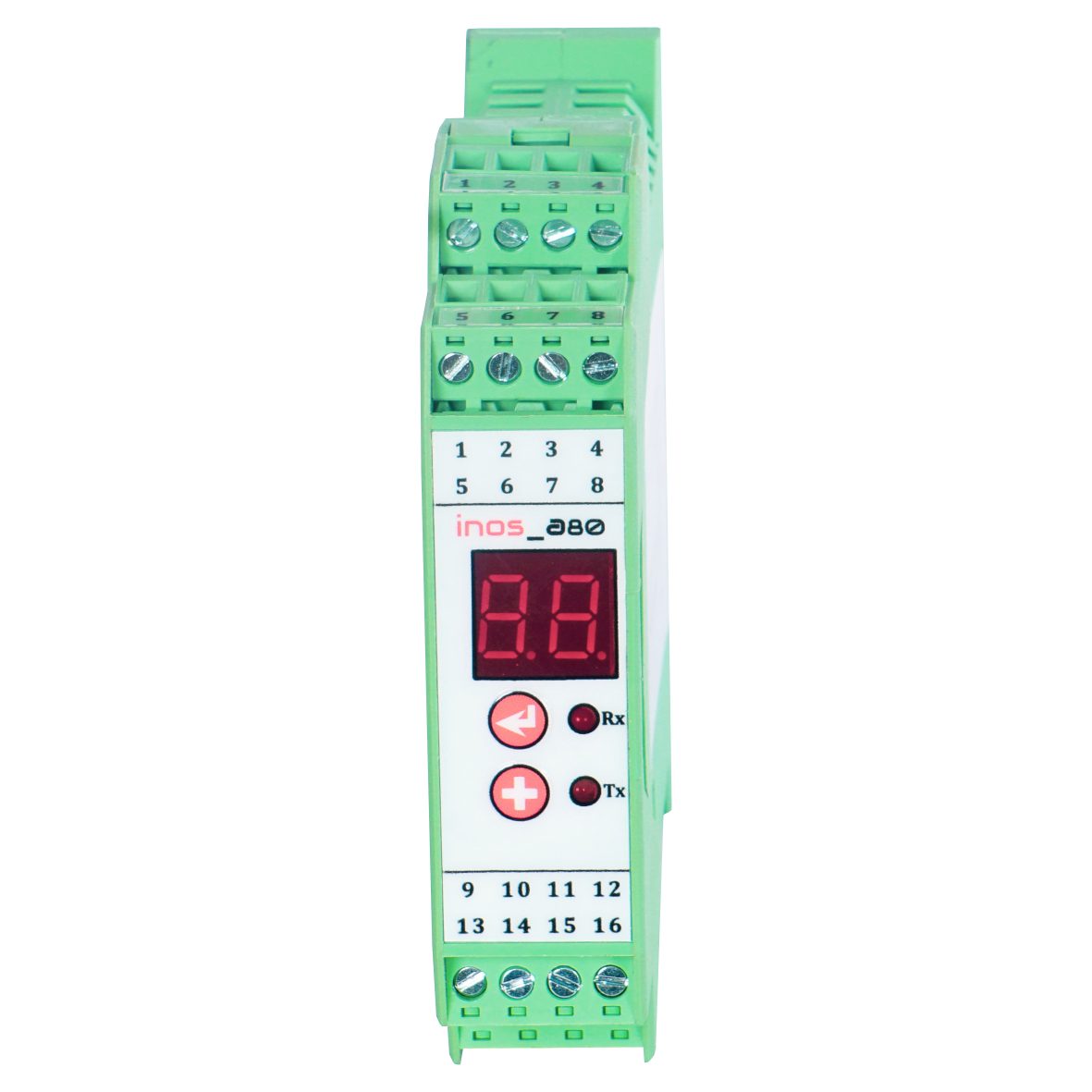

Analog Input Module

inos_a80

8-channel analog input module with RS485 Modbus RTU.

8 AIRS485 Modbus RTU24 VDC

Overview

The inos_a80 is an 8-channel analog input module for 4–20 mA and 0–10 V signals, with a 16-bit ADC, per-channel set-points and an NPN alarm output, reporting over isolated RS485 using Modbus RTU.

Specifications

Technical specifications.

Dimensions (mm): 94.0(L) X 105.0(W) X 80.0(H)
Enclosure: Aluminum HE30
Weight: 650g
Operating Voltage: 24 VDC
Power Consumption: Maximum 5 Watt
Analog Inputs: 08 Channel 4 - 20mA / 0 - 10V
ADC resolution: 16-bit
ADC accuracy: 0.1 % FS
Isolation Type: Isolated(2KV) Analog to Digital
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

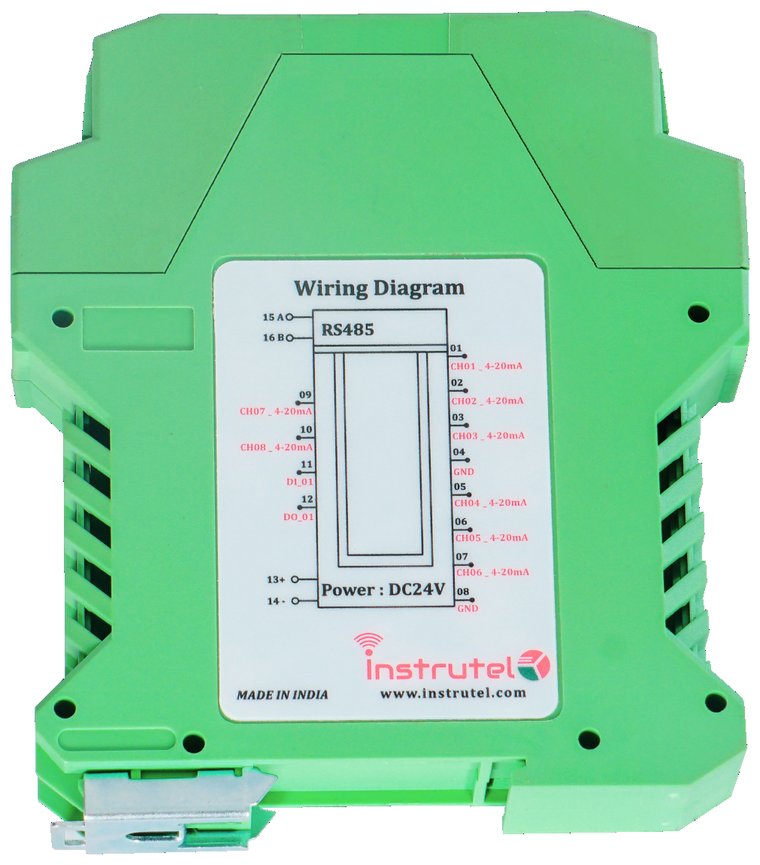

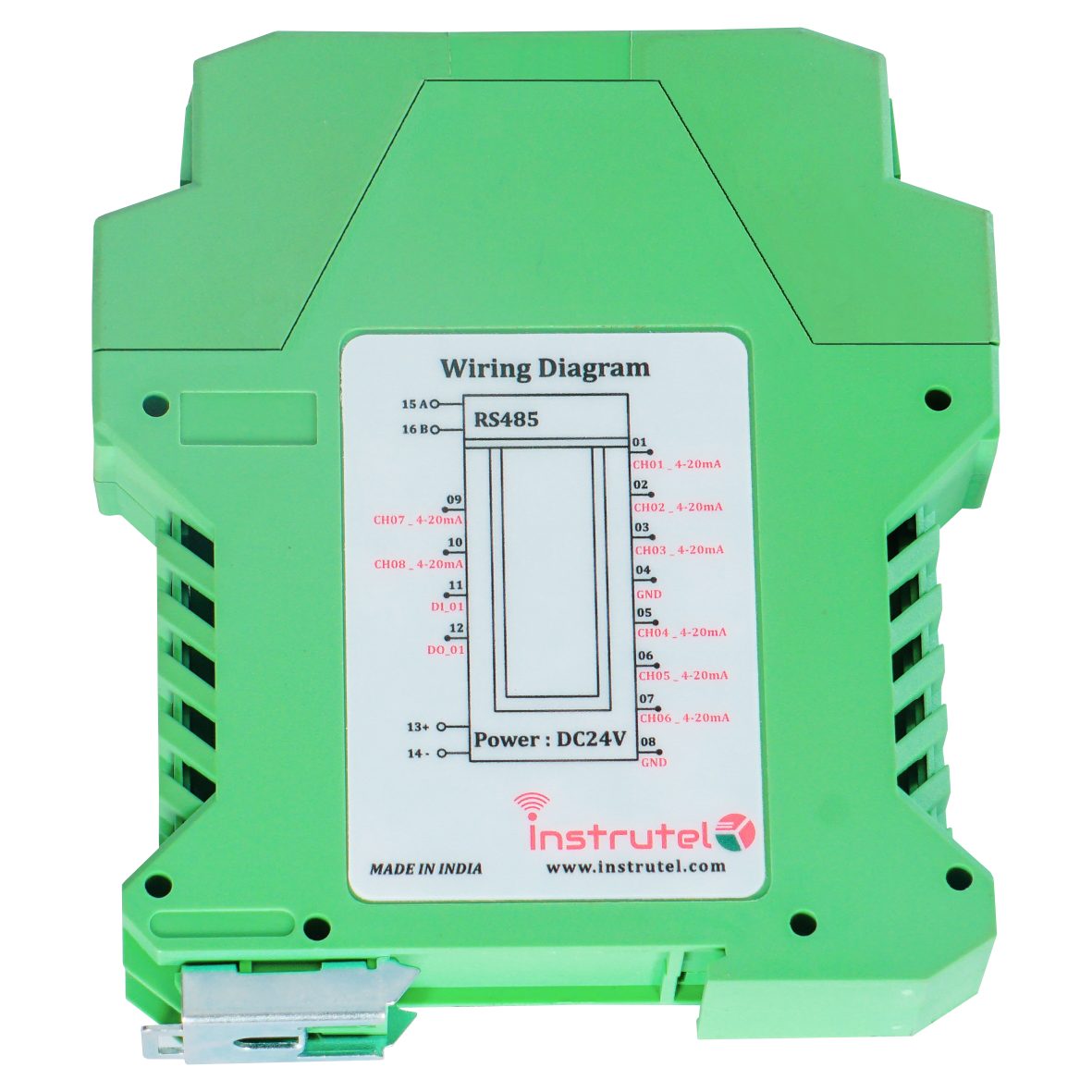

Full ratings, pin mapping and wiring are in the datasheet.

Features

8 Channel 4-20mA/0-10V, 16-bit ADC
Provision to set Parameter Range, High and Low set points for each channel
Compact Din rail Mounting
MODTCP & Modbus RTU RS485
Modular Architecture
Rugged Durability
LED Indication for RS485 Communication
Field signal indication for current inputs

Applications

Process Automation
Automotive Industry
Retrofit old machines with new devices
Building Automation
Sub-station Automation
Input to Output Expansion / Integration
Process Optimization
