Digital Output Module

inos_d0012

12-channel digital output module with RS485 Modbus RTU.

12 DORS485 Modbus RTU24 VDC
Datasheet (PDF) Watch demo Enquire
Overview

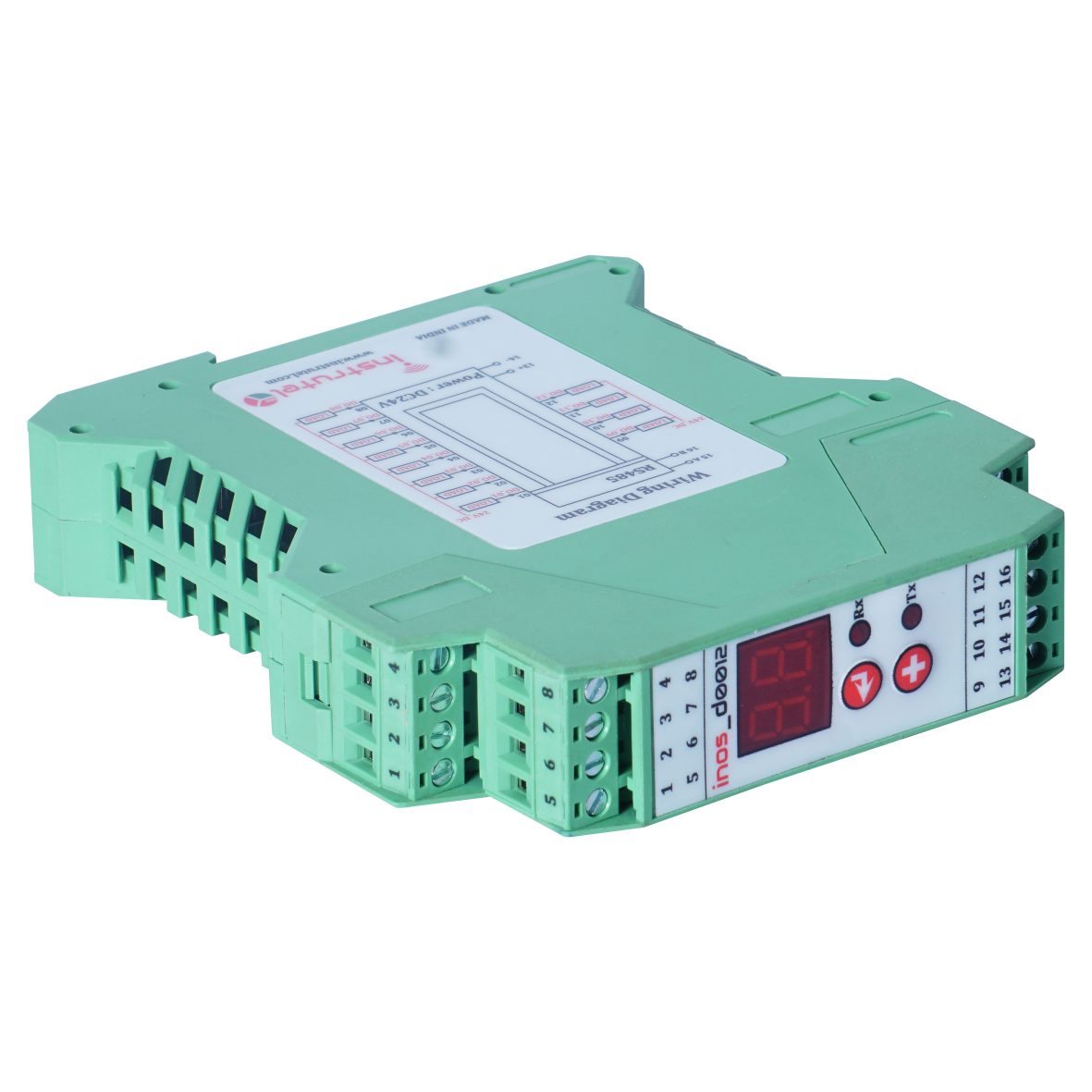

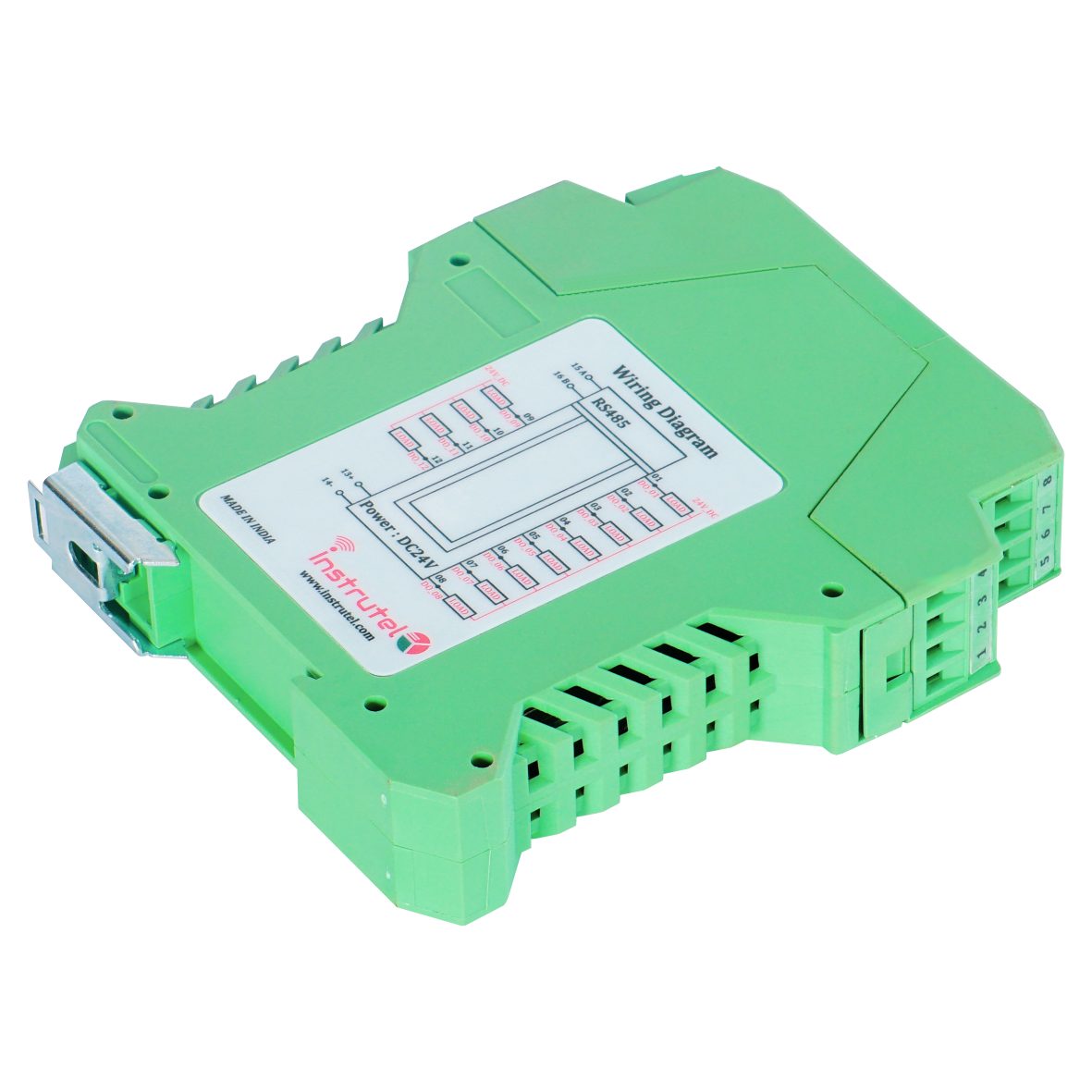

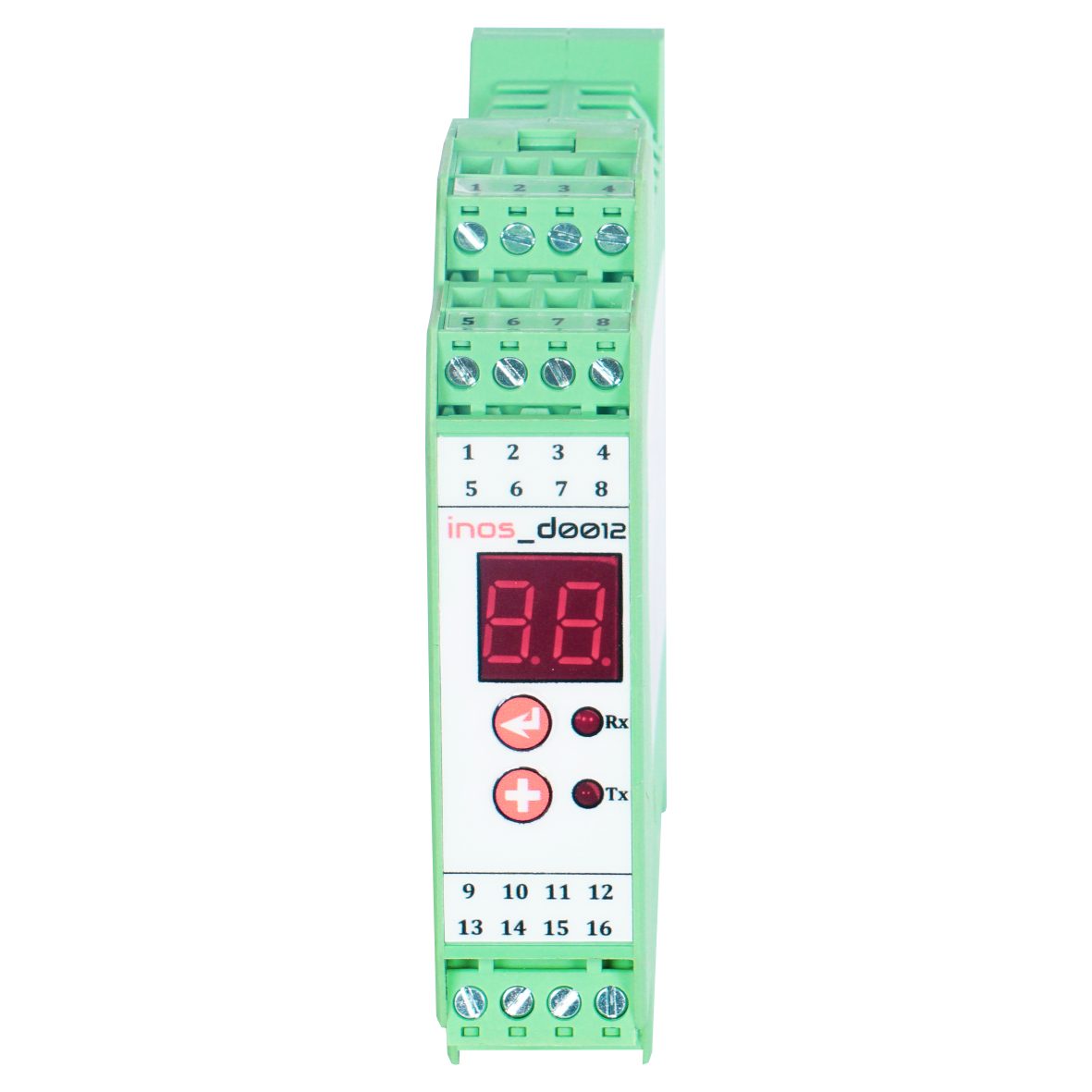

The inos_d0012 is a 12-channel digital output module for switching field devices, with isolated RS485 Modbus RTU and a 2-digit status display.

Specifications

Technical specifications.

Dimensions (mm)
23.0(L) X 100.0(W) X 115.0(H)
Enclosure
Polyamide (PA66)
Weight
150g
Outputs
12 Channel Digital Output 0 VDC
Field signal type
Open collector (Sinking),(Current 200mA)
Output Signal Mode
Latch or One pulse
Isolation Type
Optically Isolated (2KV)
Protections
Up to 1500 Vrms for 1 Minute
Connectivity Supported
Isolated RS485
Protocol Supported
Modbus RTU
Communication Interface
2-Wire Type
Watchdog Timer
System (5 Sec)
Operating Voltage
24 VDC
Power Consumption
Maximum 5 Watt
Operating Temperature
0 °C to + 70 °C
Storage Temperature
-40 °C to + 85 °C
Operating Humidity
0 to 95% (non-condensing)

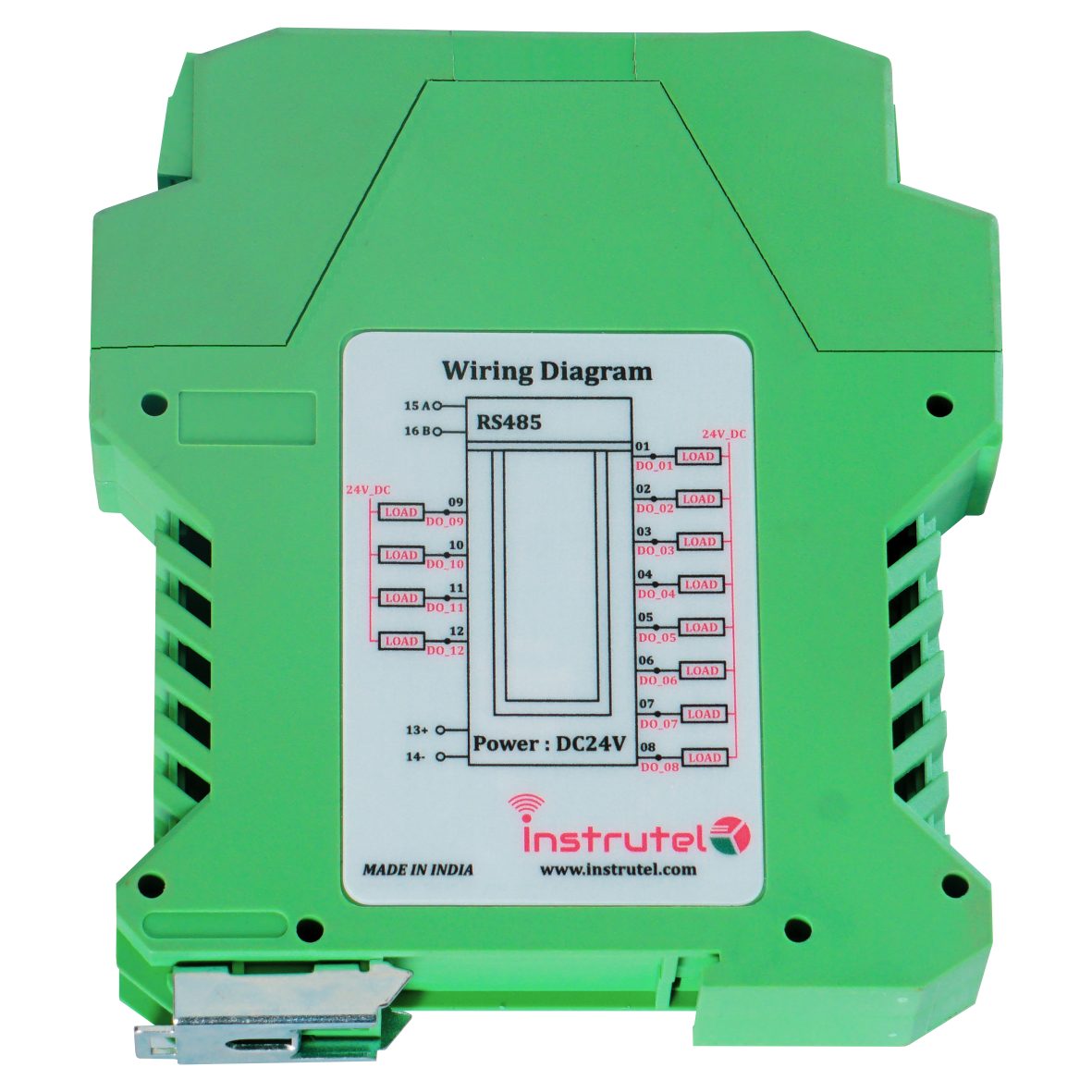

Full ratings, pin mapping and wiring are in the datasheet.

Features
  • Compact Din rail Mounting
  • Modbus RTU through RS485
  • Plug and play Device
  • Industry Compliant
  • Modular Architecture
  • Rugged Durability
Applications
  • Process Automation
  • Automotive Industry
  • Retrofit old machines with new devices
  • Building Automation
  • Sub-station Automation
  • Input to Output Expansion / Integration
  • Process Optimization
