Digital Input Module

inos_d1200

12-channel digital input module with RS485 Modbus RTU and a 2-digit status display.

12 DIRS485 Modbus RTU24 VDC

Overview

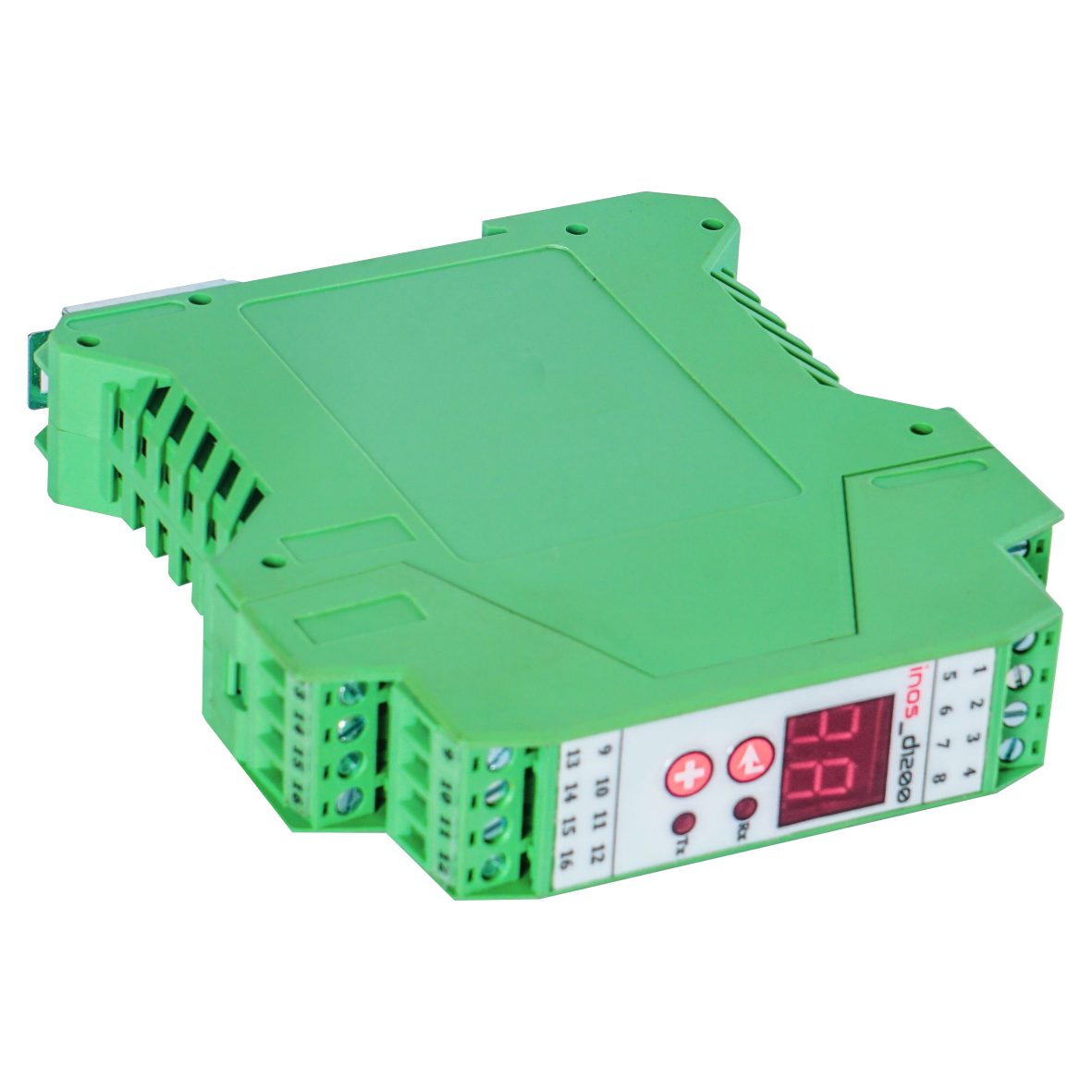

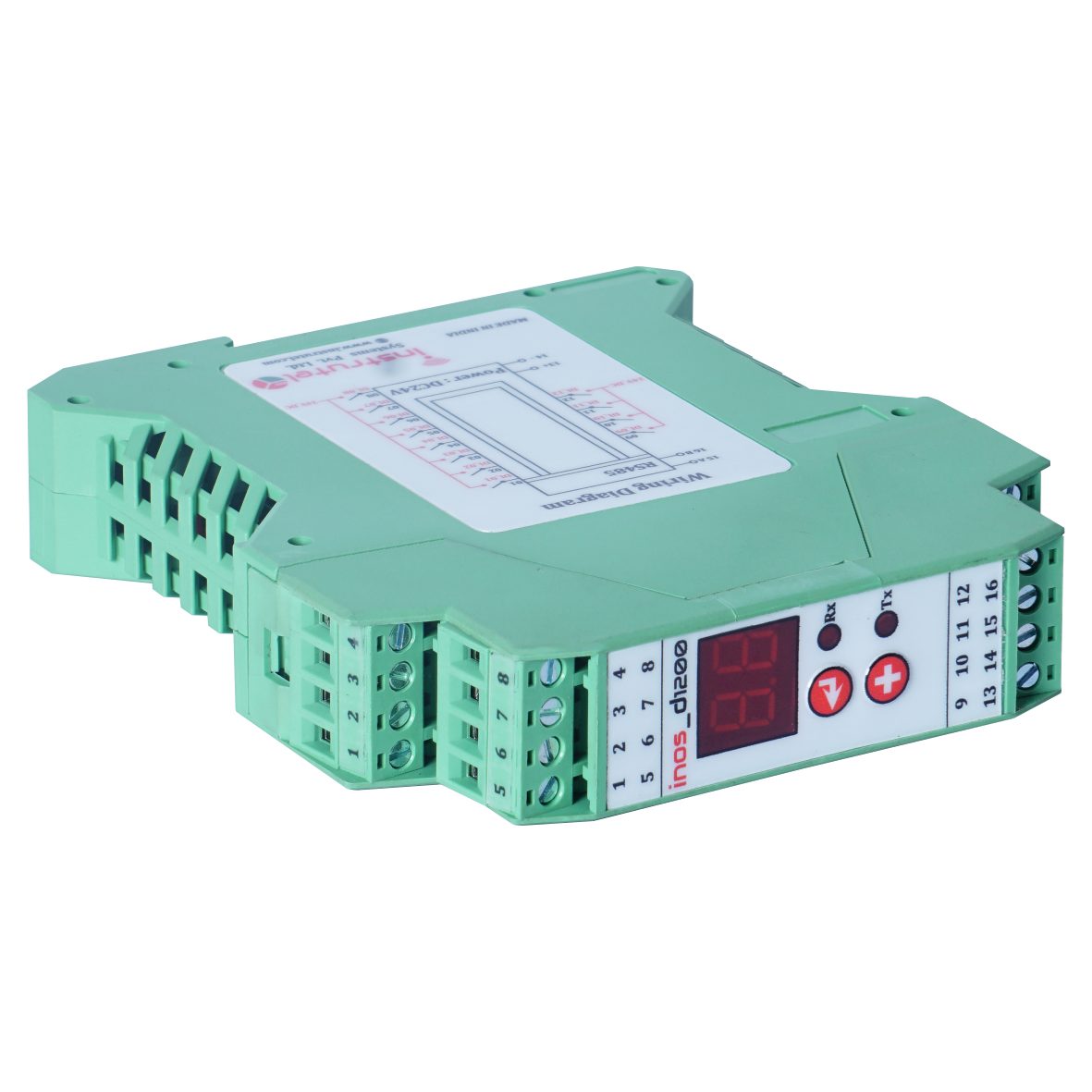

The inos_d1200 is a 12-channel digital input module that reads 24 VDC status signals from machines and sensors, with opto-isolated inputs and a 2-digit status display, reporting over isolated RS485 using Modbus RTU.

Specifications

Technical specifications.

Dimensions (mm): 23.0(L) X 100.0(W) X 115.0(H)
Enclosure: Polyamide (PA66)
Weight: 150g
Inputs: 12 Channel Digital Input 24 VDC
Isolation Type: Opto-coupler
Protections: Up to 1500 Vrms for 1 Minute
Connectivity Supported: Isolated RS485
Protocol Supported: Modbus RTU
Communication Interface: 2-Wire Type
Watchdog Timer: System (5 Sec)
Operating Voltage: 24 VDC
Power Consumption: Maximum 5 Watt
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

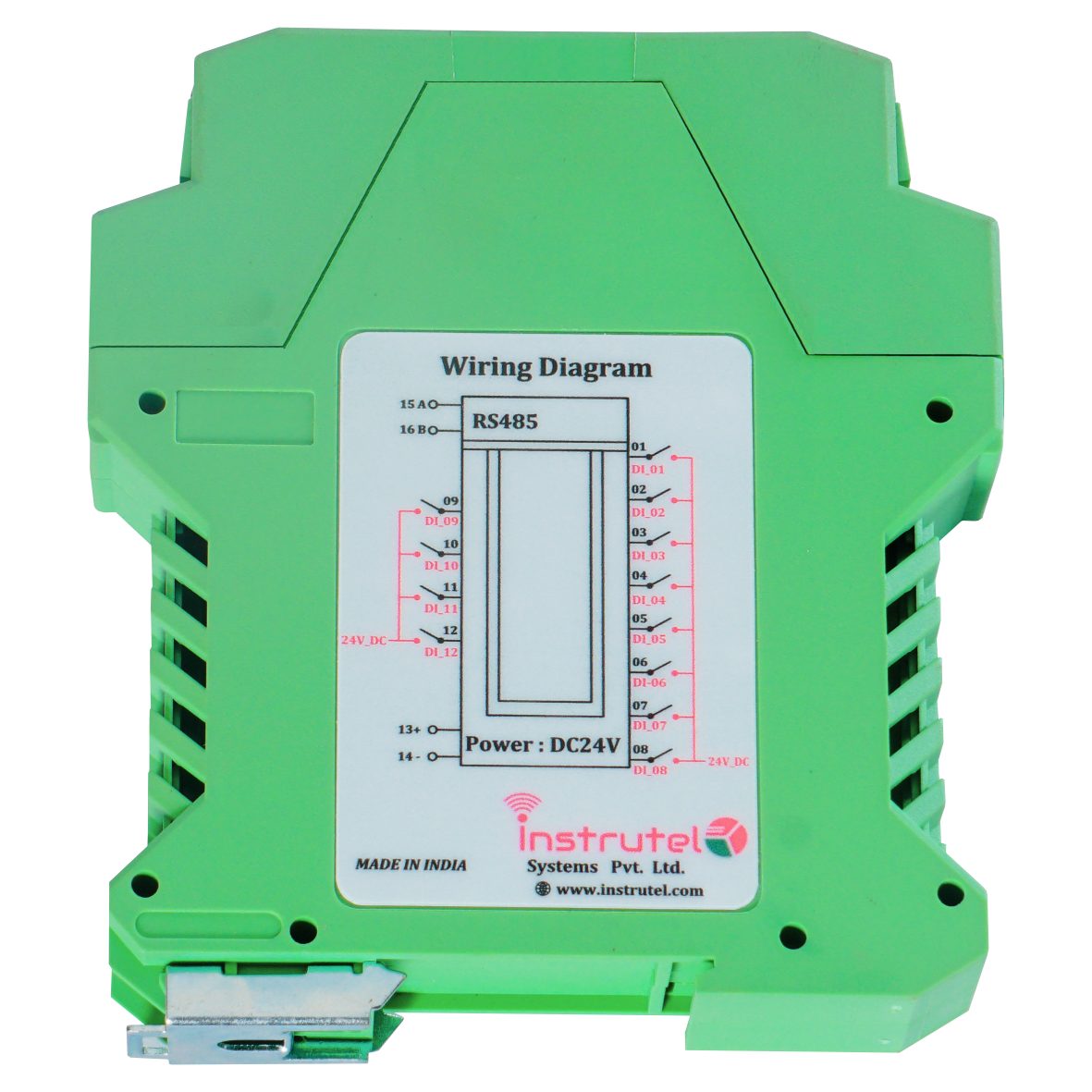

Full ratings, pin mapping and wiring are in the datasheet.

Features

Compact Din rail Mounting
Modbus RTU through RS485
Plug and play Device
Industry Compliant
Modular Architecture
Rugged Durability

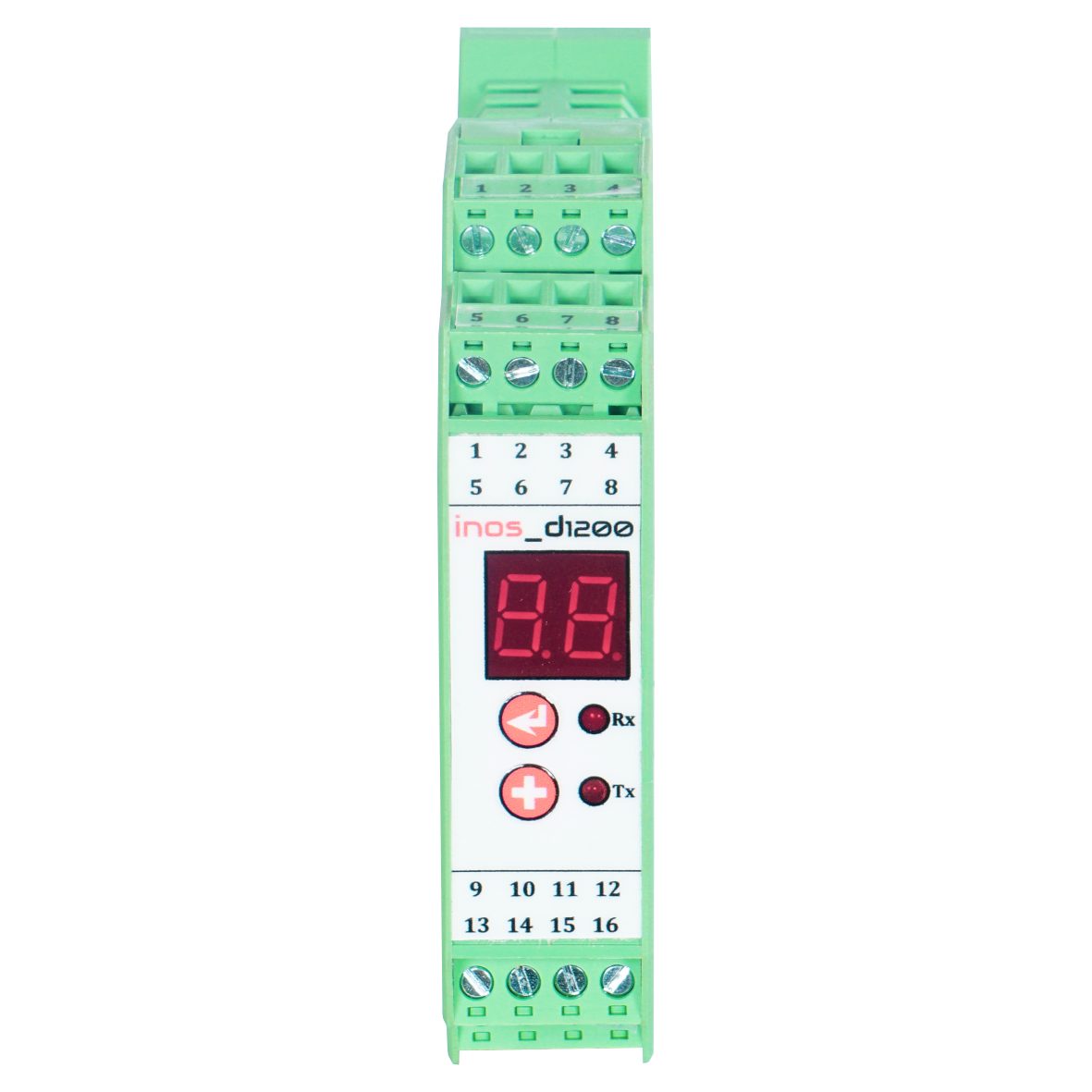

2 Digits Multi-Function Display
MODBUS Setting (ID, Baud rate & Setting) Parity
Inputs Live Status
LED Indication for Communication

Applications

Process Automation
Automotive Industry
Retrofit old machines with new devices
Building Automation
Sub-station Automation
Input to Output Expansion / Integration
Process Optimization
