inos_EA08

8-channel analog output module with Ethernet and RS485 connectivity.

8 AOEthernet + RS485MQTT

Overview

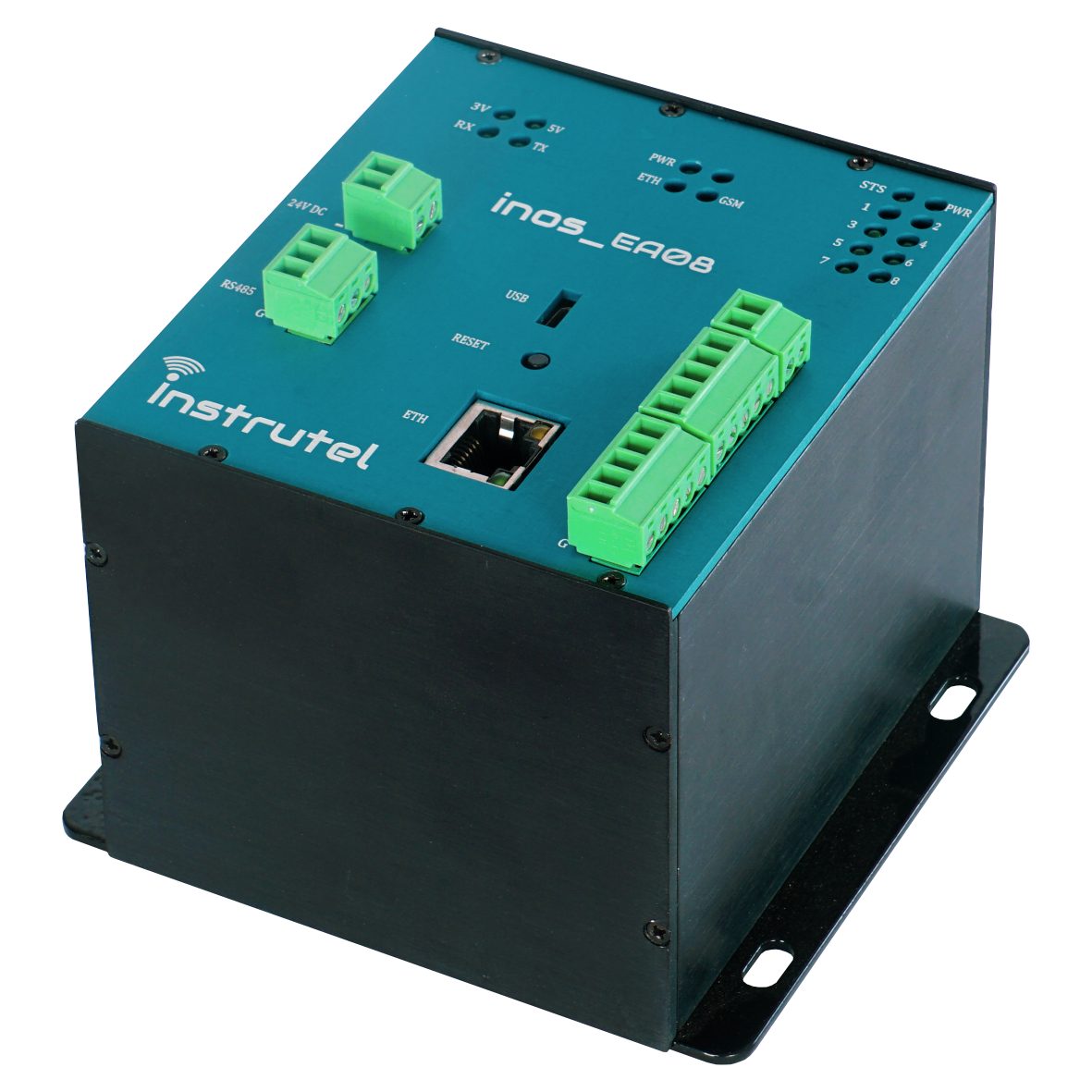

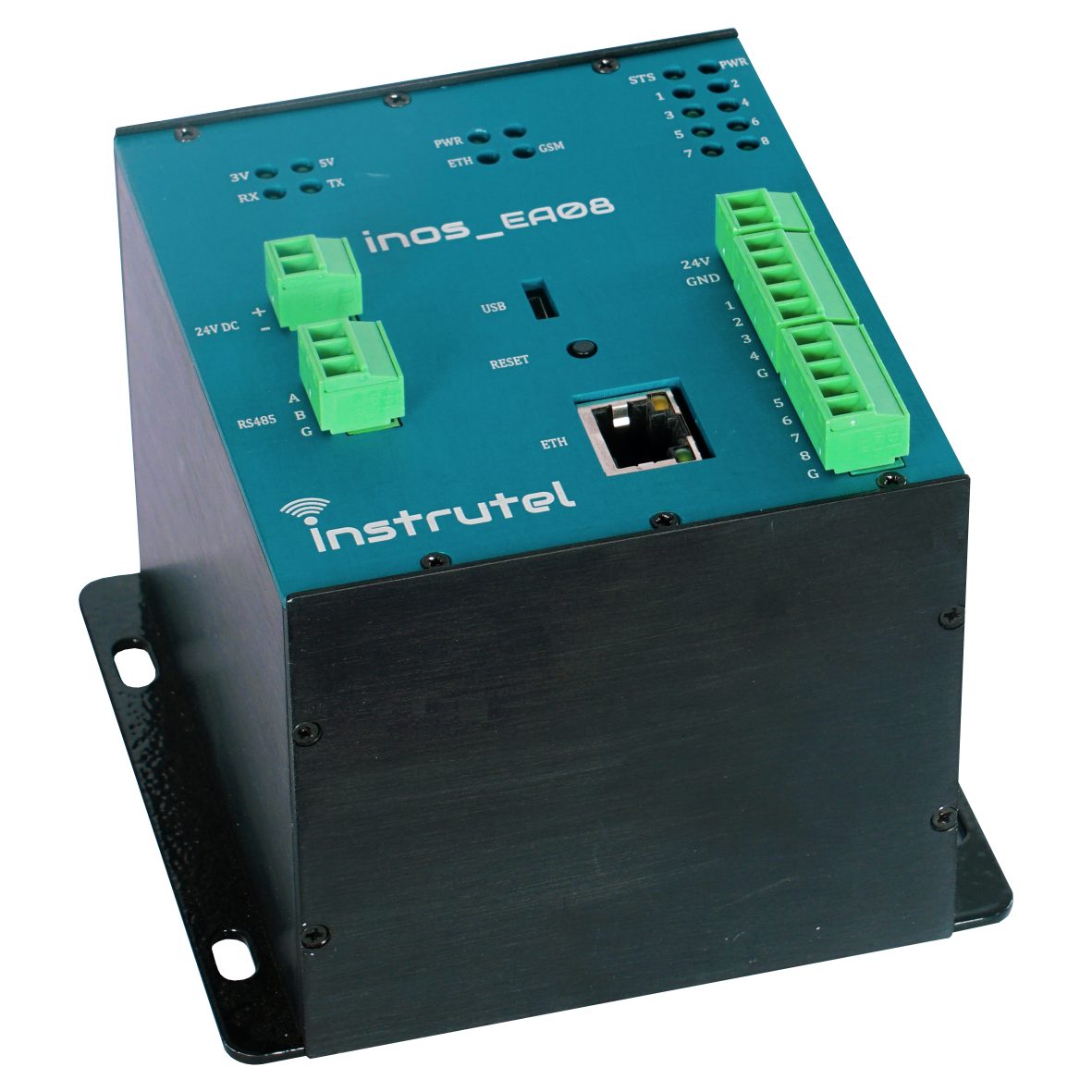

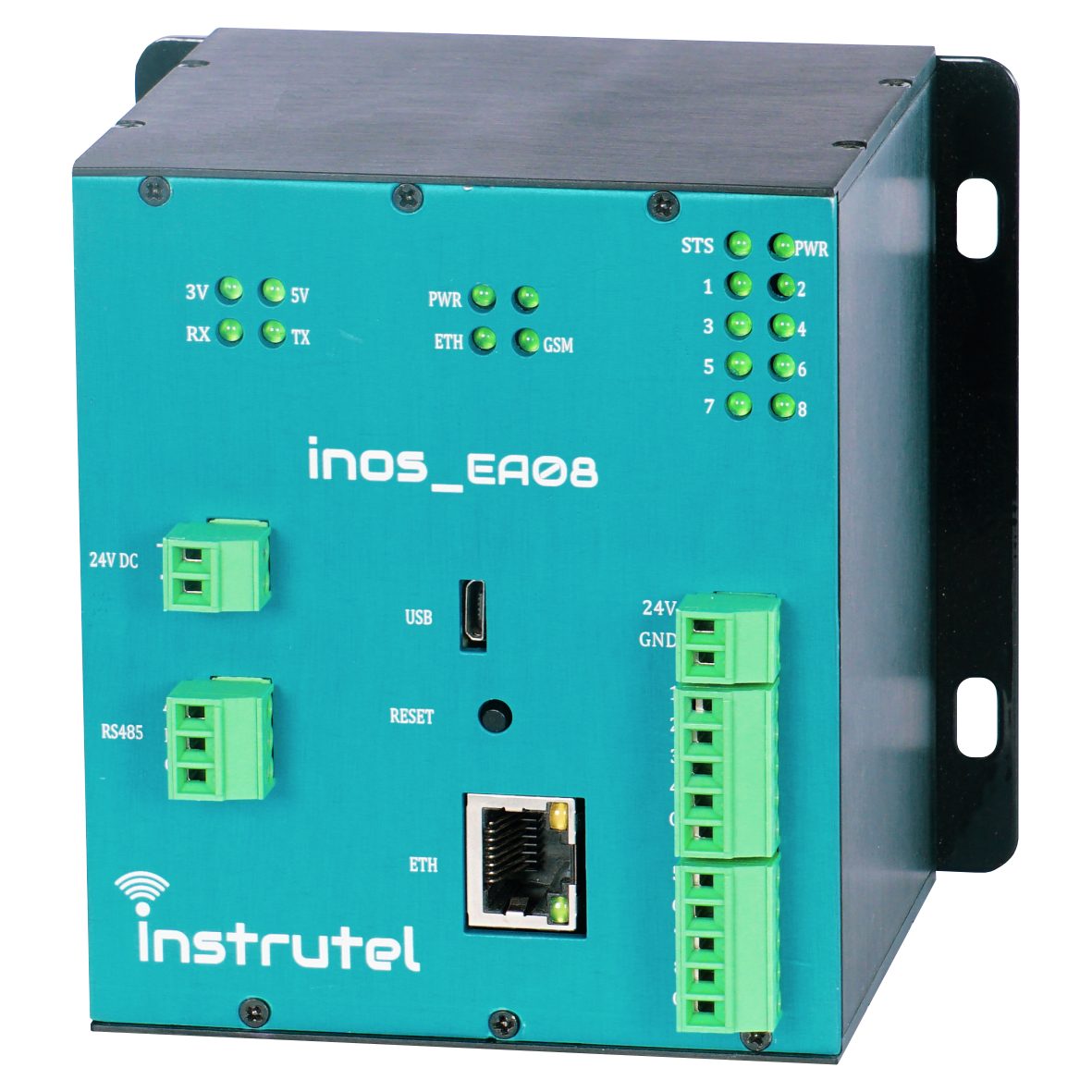

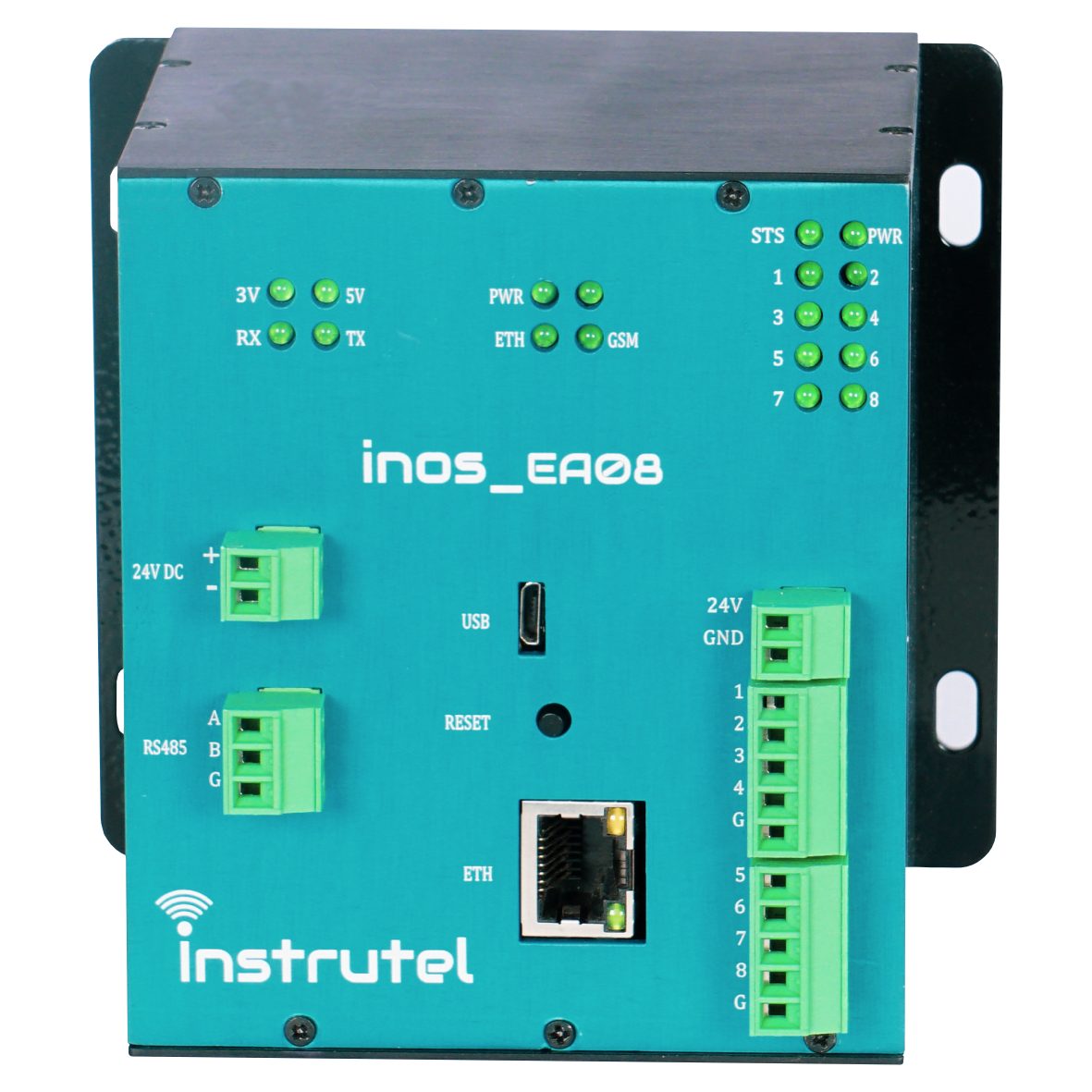

The inos_EA08 is an 8-channel analog output module with Ethernet and RS485 connectivity, driving 4–20 mA / 0–10 V loads — the Ethernet output counterpart to the EA80.

Specifications

Technical specifications.

Analog outputs: 08 Channel 4–20 mA / 0–10 V
Resolution: 16-bit DAC
Isolation: Isolated, analog to digital
Connectivity: Ethernet (Modbus TCP) + RS485
Operating Voltage: 24 VDC
Operating temperature: 0 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Humidity: 0–95% non-condensing

Features

8 Channel 4-20mA/0-10V analog output
Provision to set range per channel

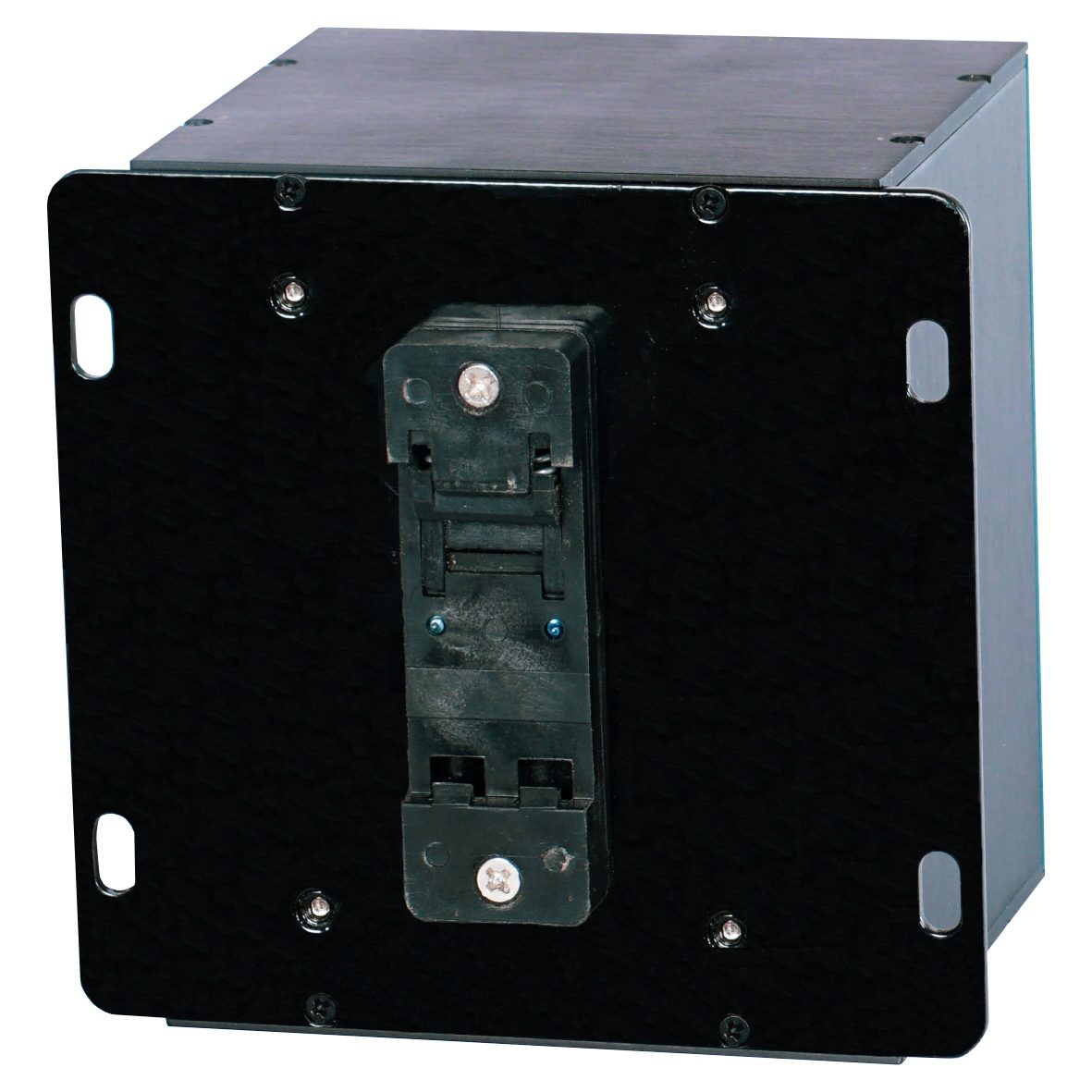

Compact Din rail Mounting
Modbus TCP & Modbus RTU over RS485
Modular Architecture
Rugged Durability

Applications

Process automation
Building automation
Sub-station automation
Input-to-output integration
Process optimization
