Analog Input · Ethernet

inos_EA80

8-channel analog input module with Ethernet and RS485 connectivity.

8 AIEthernet + RS485MQTT

Overview

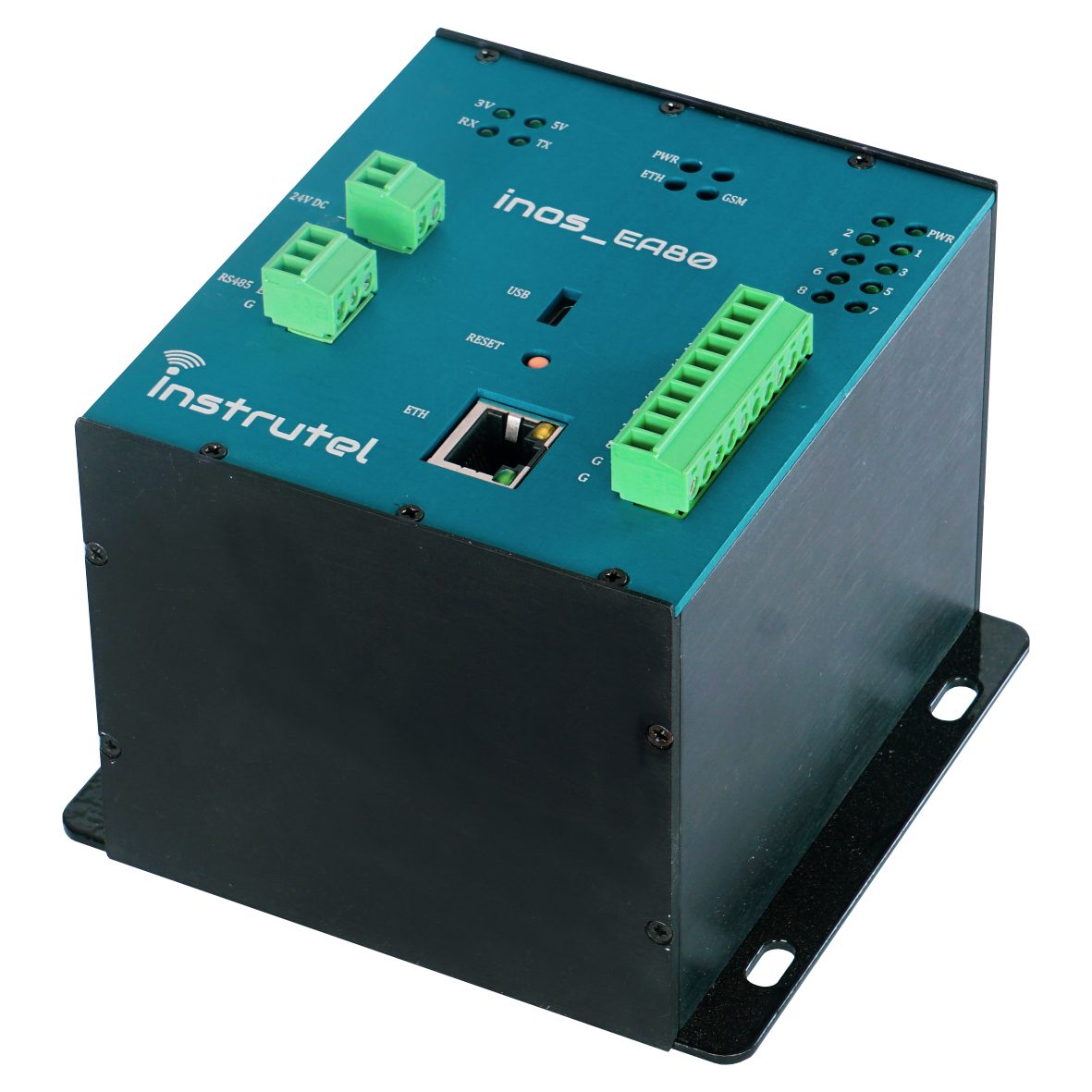

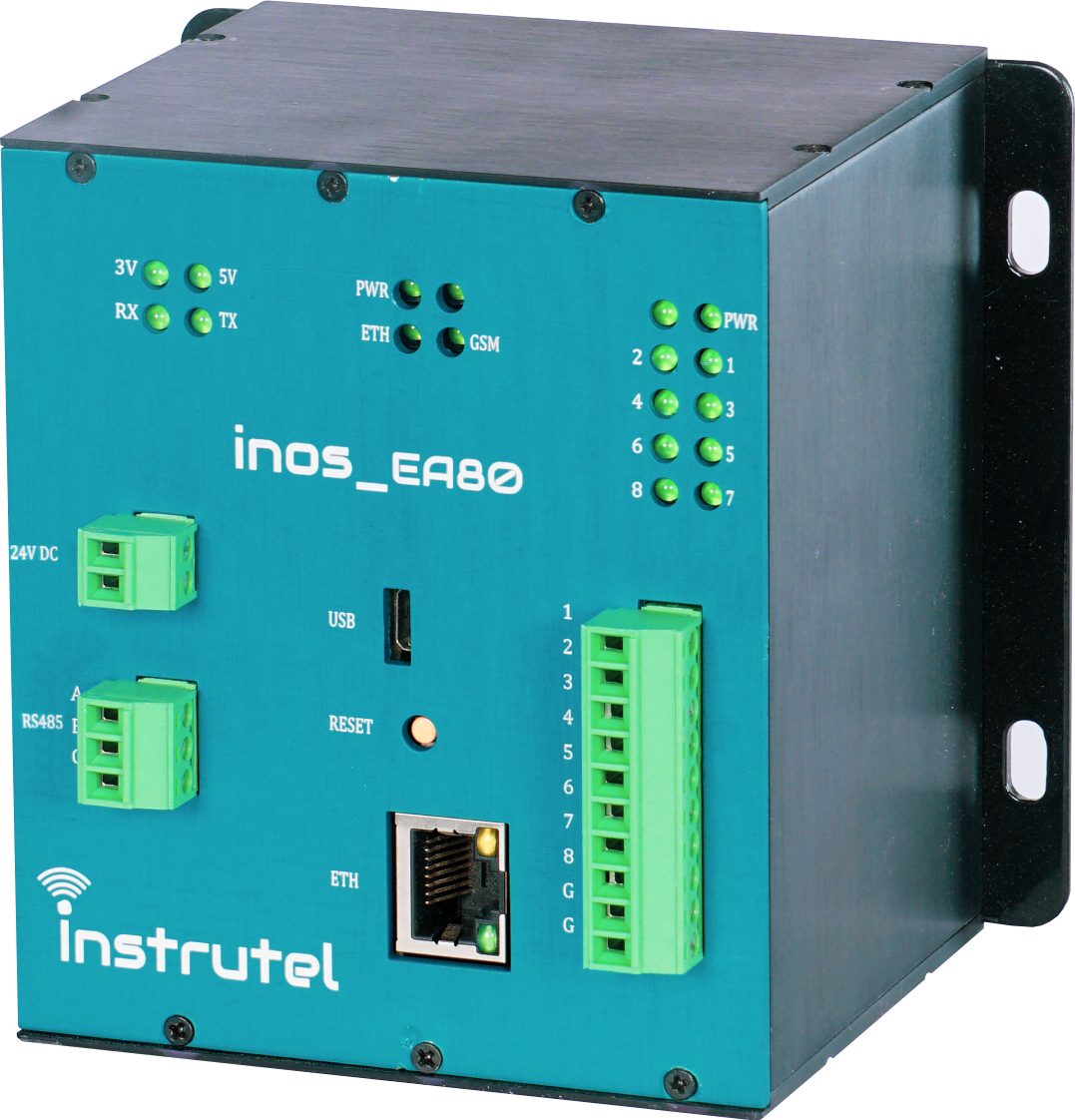

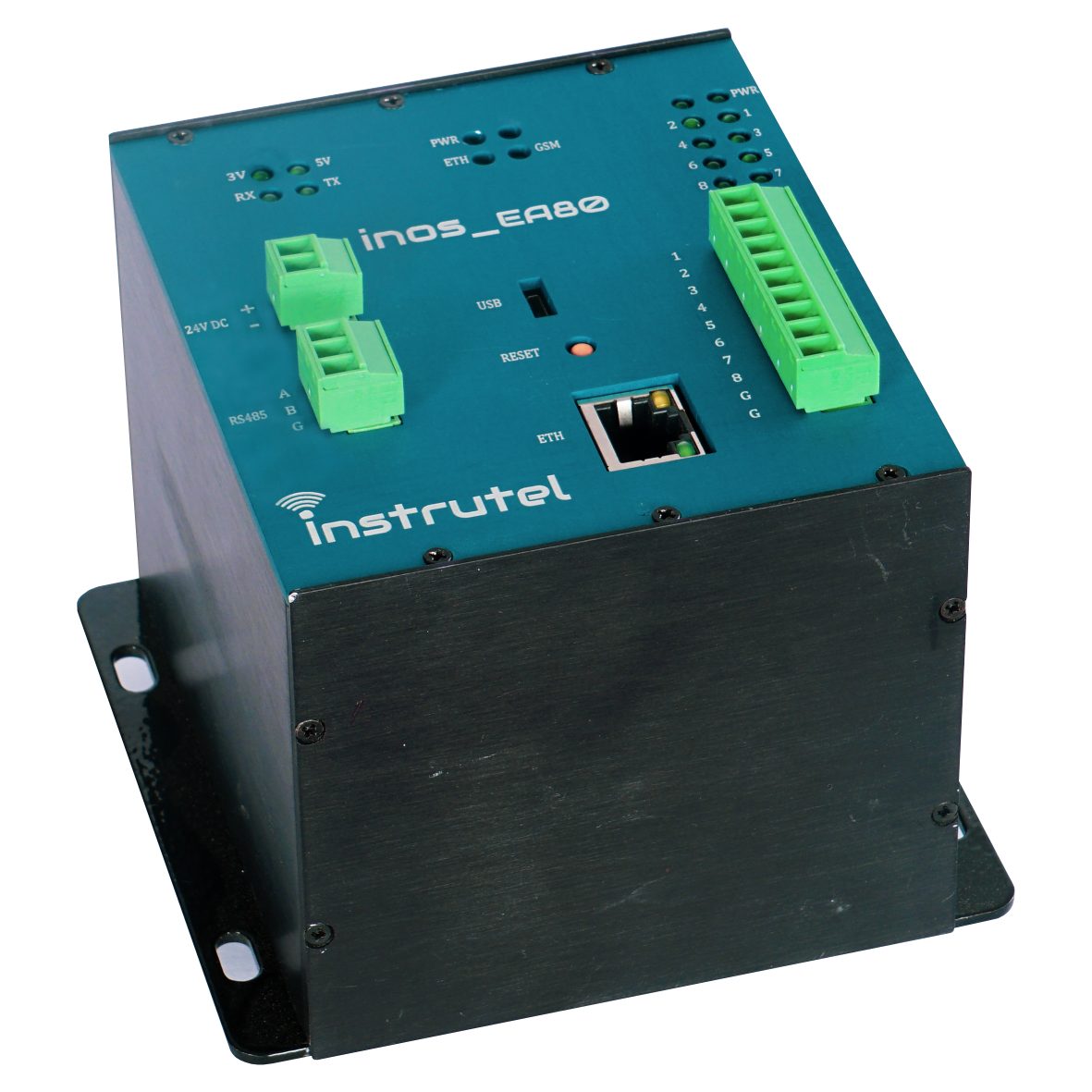

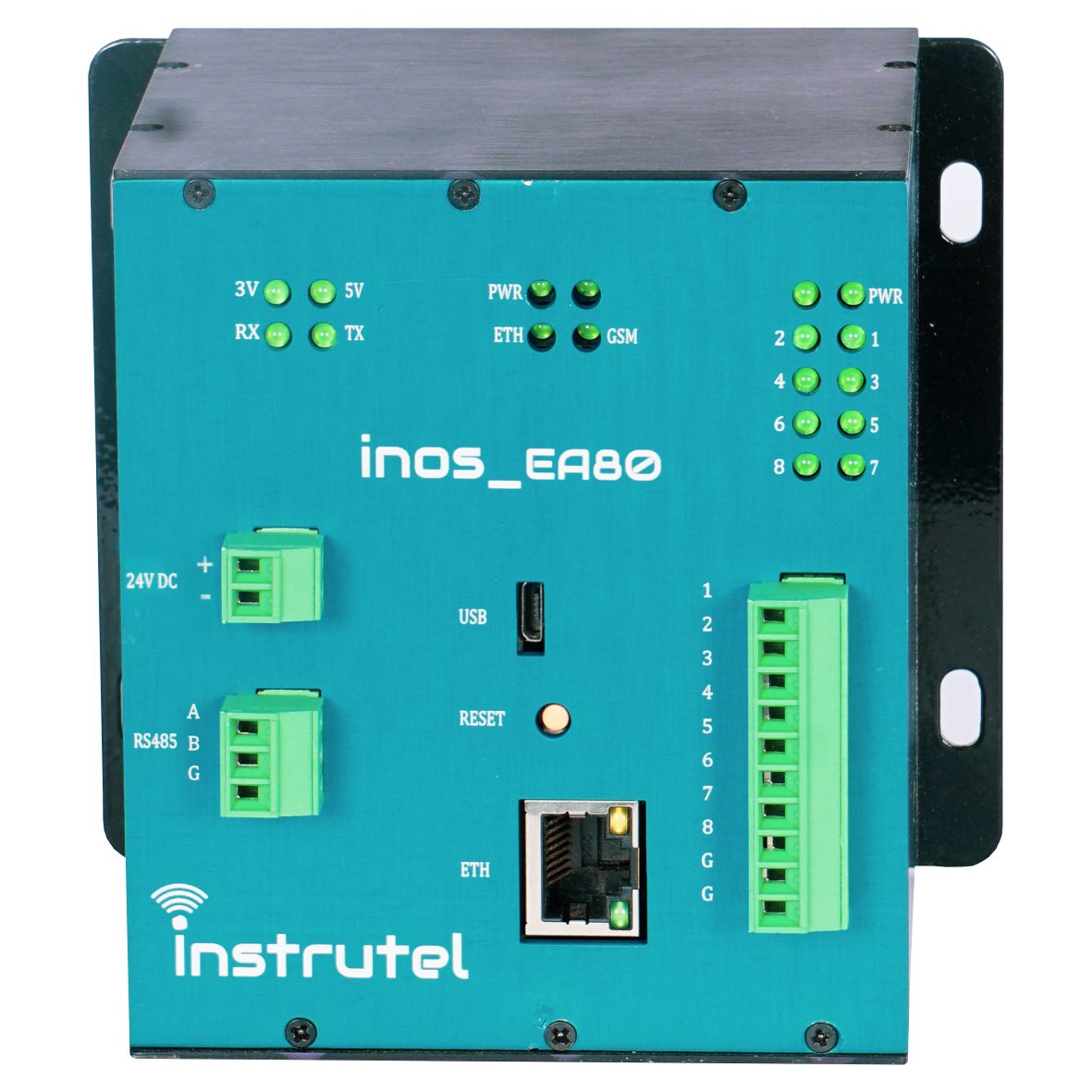

The inos_EA80 is an 8-channel analog input module with an on-board Ethernet interface (Modbus TCP) alongside RS485, digitising 4–20 mA / 0–10 V signals with a 16-bit ADC.

Specifications

Technical specifications.

Dimensions (mm): 94.0(L) X 105.0(W) X 80.0(H)
Enclosure: Aluminum HE30
Weight: 650g
Operating Voltage: 24 VDC
Power Consumption: Maximum 5 Watt
Analog Inputs: 08 Channel 4 - 20mA / 0 - 10V
ADC resolution: 16-bit
ADC accuracy: 0.1 % FS
Isolation Type: Isolated(2KV) Analog to Digital
Operating Temperature: 0 °C to + 70 °C
Storage Temperature: -40 °C to + 85 °C
Operating Humidity: 0 to 95% (non-condensing)

Full ratings, pin mapping and wiring are in the datasheet.

Features

8 Channel 4-20mA/0-10V, 16-bit ADC
Provision to set Parameter Range, High and Low set points for each channel

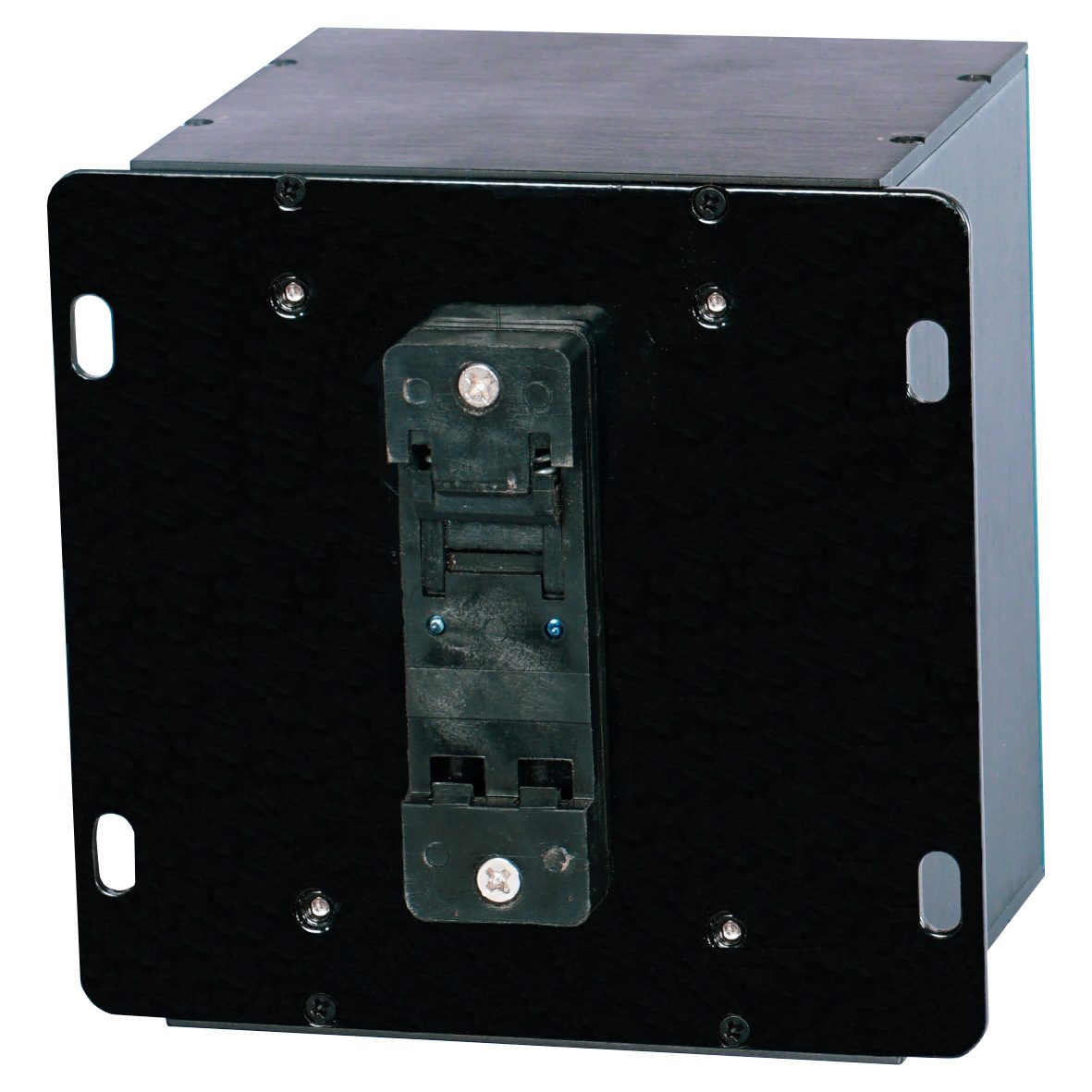

Compact Din rail Mounting
MODTCP & Modbus RTU RS485
Modular Architecture
Rugged Durability
LED Indication for RS485 Communication
Field signal indication for current inputs

Applications

Process Automation
Automotive Industry
Retrofit old machines with new devices
Building Automation
Sub-station Automation
Input to Output Expansion / Integration
Process Optimization
