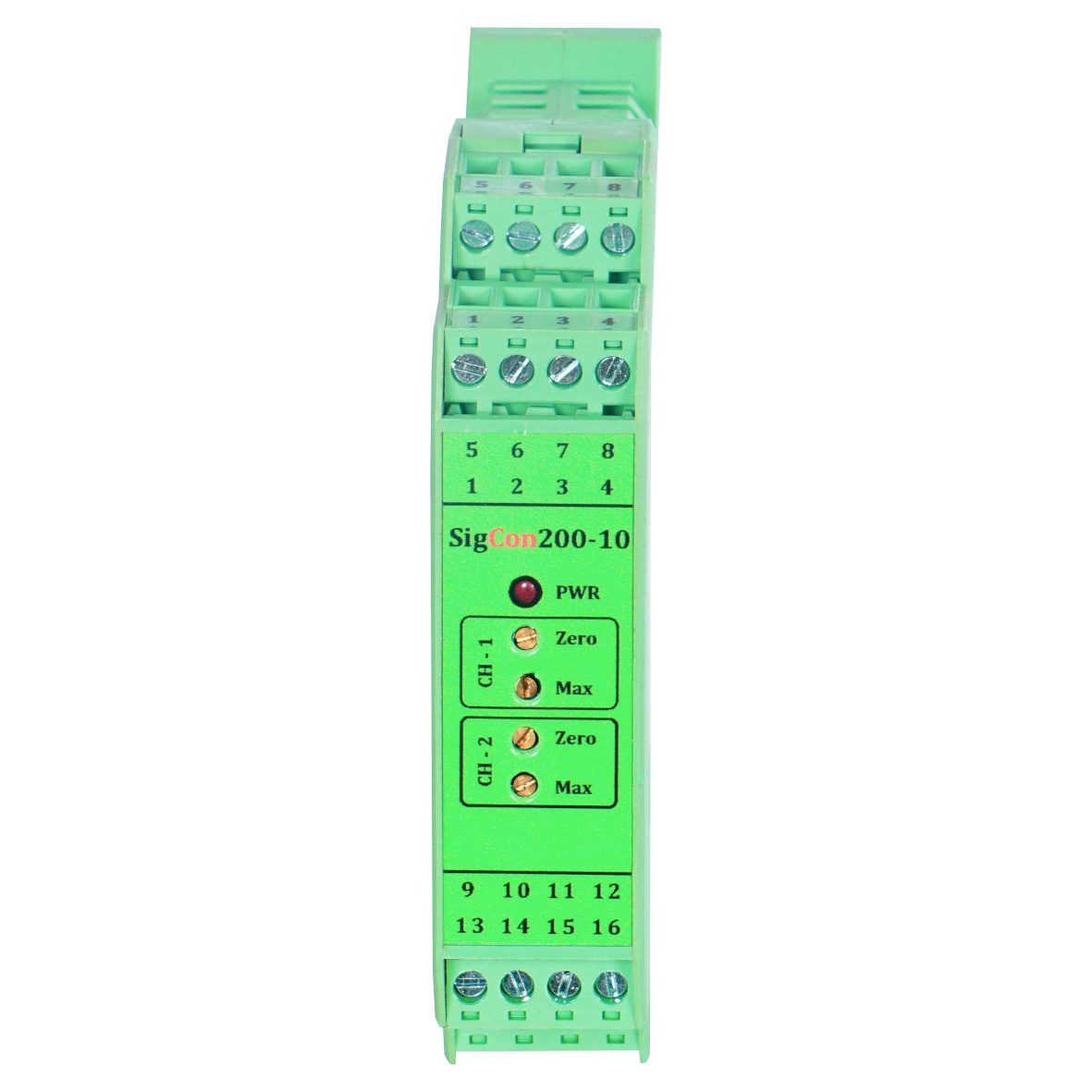

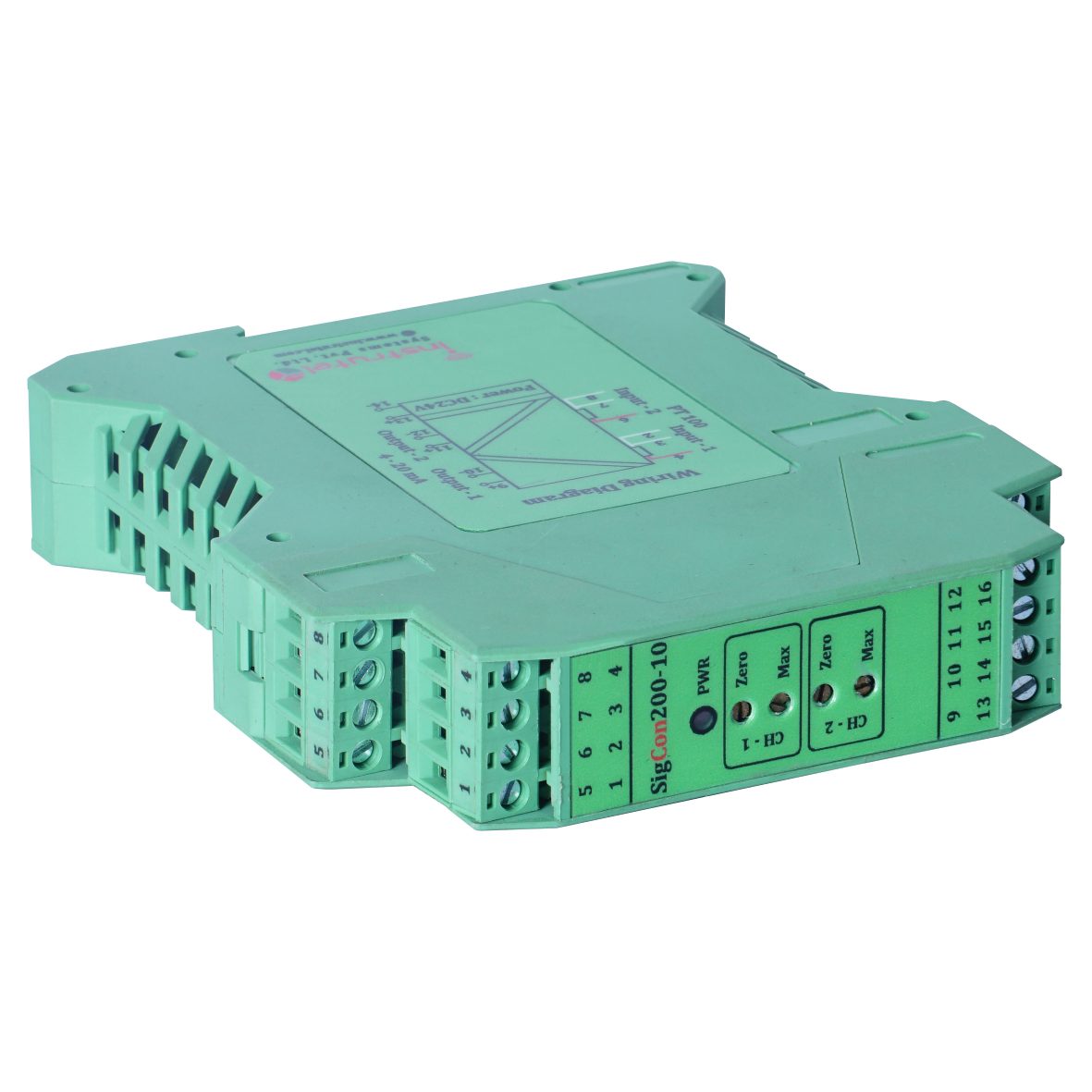

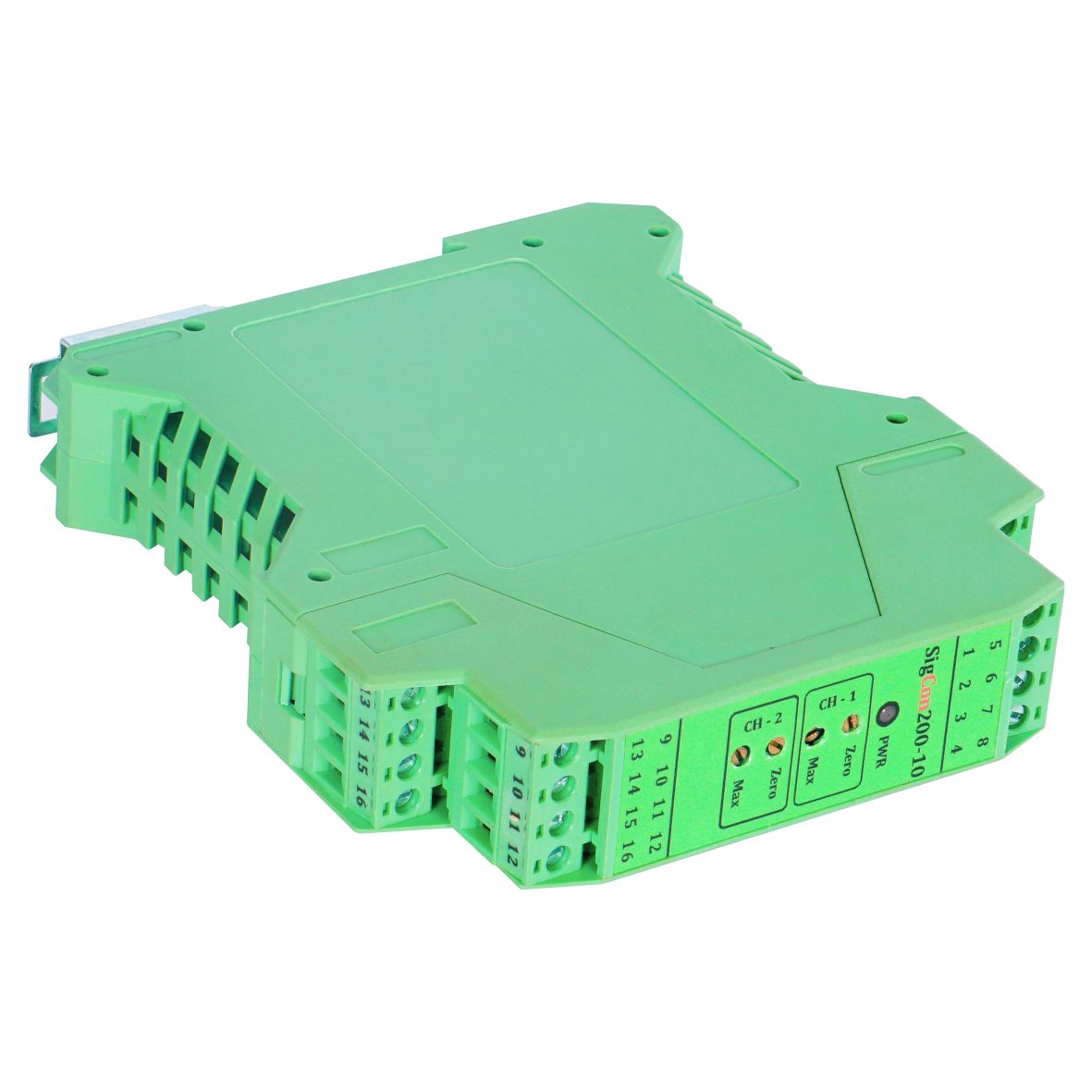

SigCon200-10

Isolated RTD-to-4–20 mA converter for clean, accurate temperature signals.

RTD input4–20 mA outputIsolated

Overview

The SigCon200-10 is an isolated signal converter that turns a 3-wire PT100 RTD input into a 4–20 mA output, with high accuracy and 2 kVAC isolation for clean, safe temperature signals.

Specifications

Technical specifications.

Input: 3-wire PT100 RTD
Output: 4–20 mA
Accuracy: 0.2% FS
Linearity: 0.2% FS
Isolation: 2.0 kVAC for 65 s
Ripple & noise: < 30 mVp-p
Dimensions: 23 × 100 × 115 mm
Enclosure: Polyamide (PA66)
Weight: 150 g

Full ratings, pin mapping and wiring are in the datasheet.

Features

Compact Din rail Mounting
Three wire PT100 RTD signal input
High accuracy of 0.2% FS
High linearity of 0.2% FS
Isolation test voltage 2.0kVAC for 65s
Low ripple and noise: <30mVp-p
High reliability, Low cost compact design, Convenient to Use
Rugged Durability
