RS232 to RS485

UCom-05

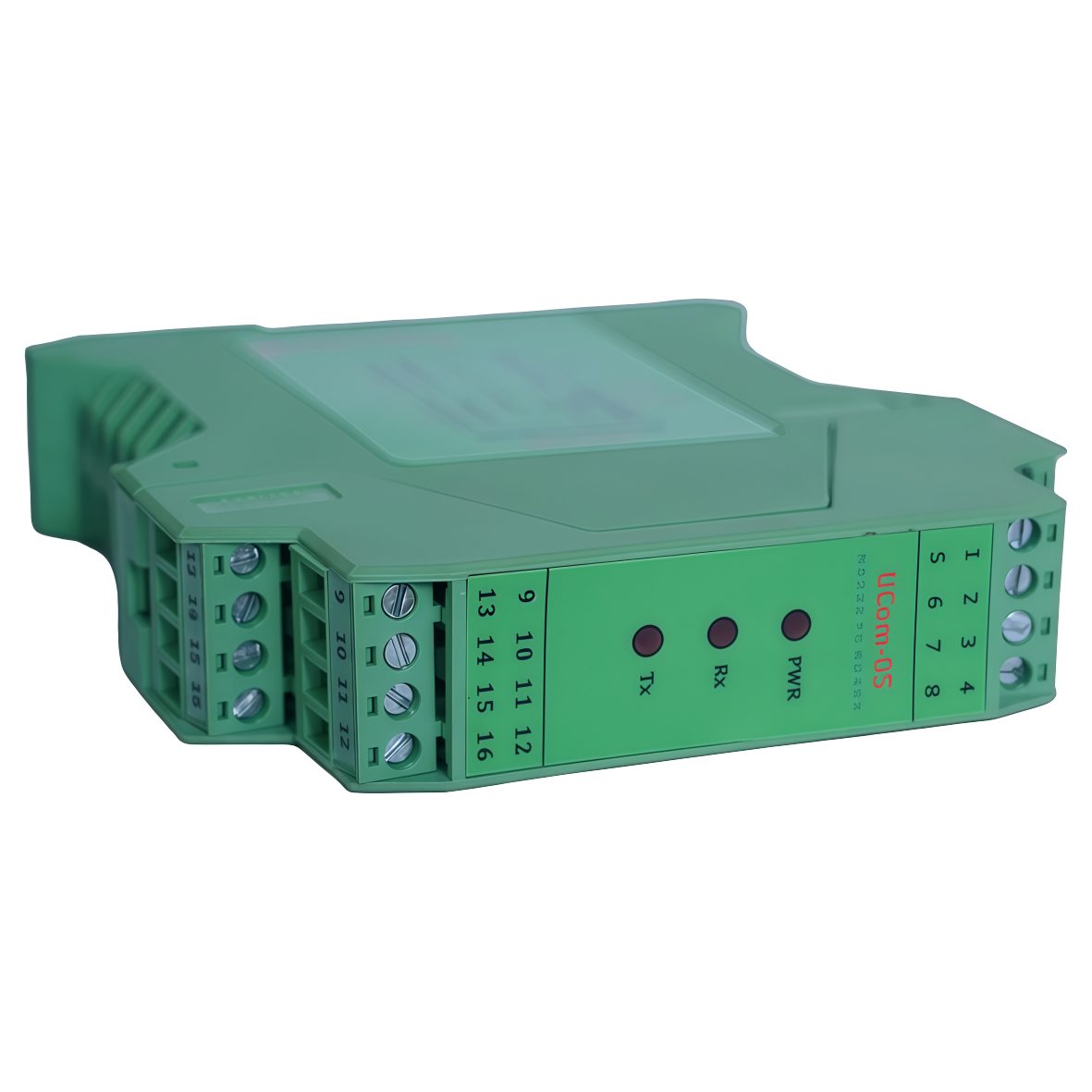

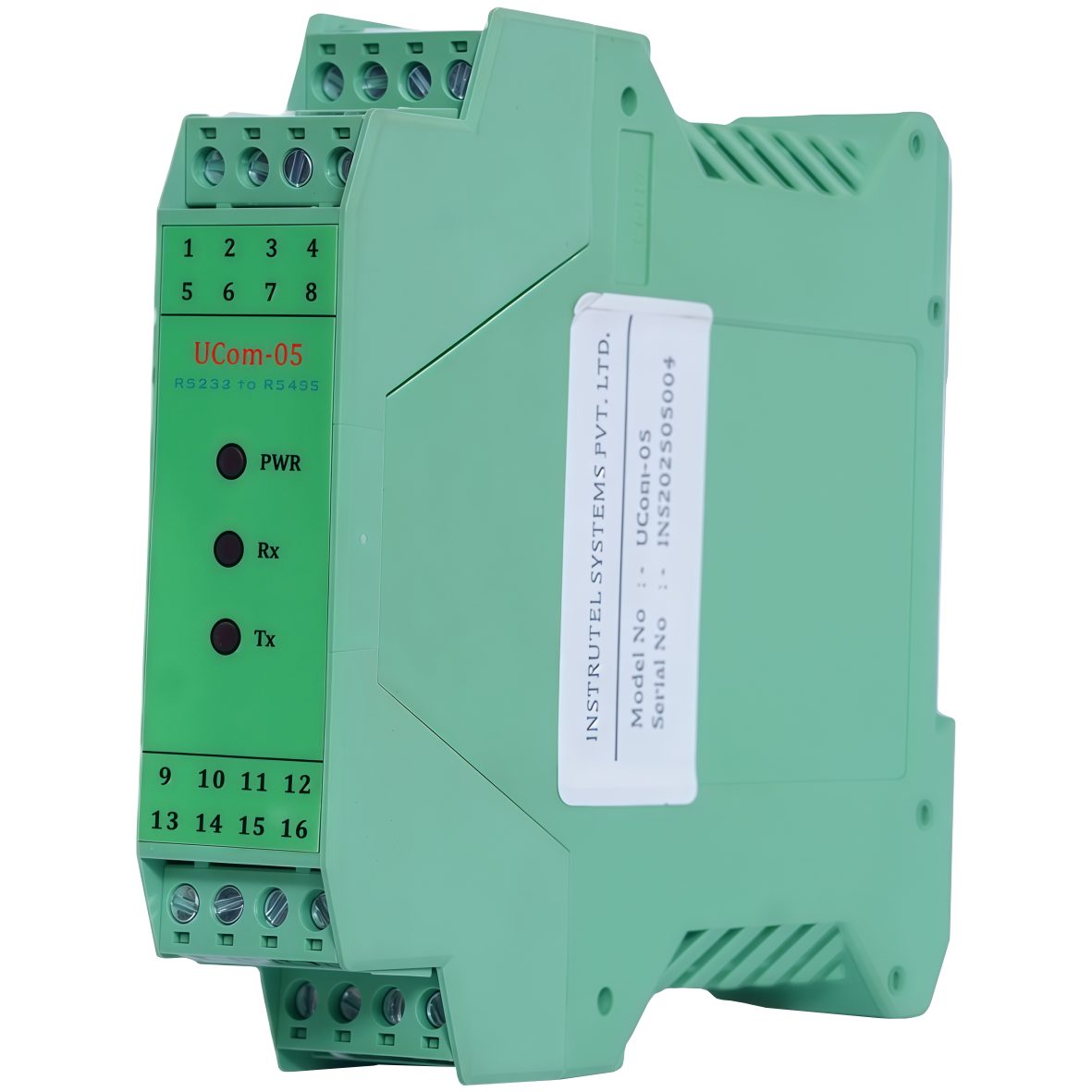

DIN-rail RS232 to RS485 converter.

RS232RS485DIN-rail
Datasheet (PDF) Enquire
Overview

The UCom-05 is an RS232-to-RS485 converter for extending serial links and connecting RS485 device networks.

Specifications

Technical specifications.

RS485
DataA(+), DataB(-), Ground (Isolation 2500VDC)
RS232
2(RXD), 3(TXD), 5(GND)
Connector
Removable
Data Rate
115.2 kbps
Operating Voltage
24 VDC
Consumption
1 W (low power device - draws less than 200mA)
Operating Temperature
0 °C to + 70 °C
Storage Temperature
-40 °C to + 85 °C
Operating Humidity
0 to 95% (non-condensing)

Full ratings, pin mapping and wiring are in the datasheet.

Features
  • RS232 to RS485 Isolated
  • Data rate up to 115.2kbps
  • Maximum 32 devices on RS485
  • Convenient, quick inline installation
  • Compact size fits into laptop bags, perfect for field services
  • Removable terminal block for easy wiring
